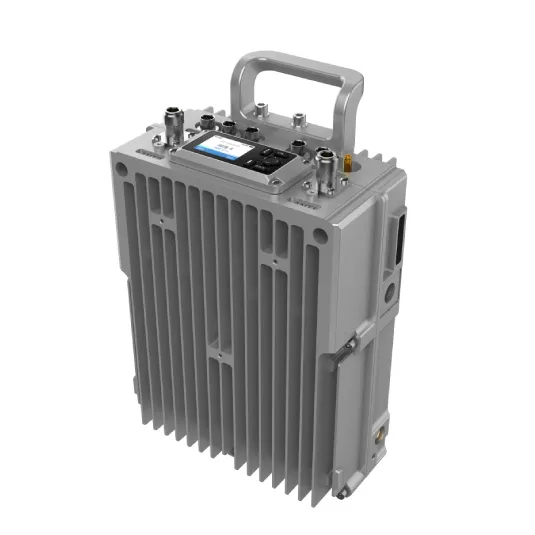

The sMesh ("s" is smart, means highly flexible) broadband ad hoc products, based on LTE, combine mature OFDM technology with flexible channel coding. They feature optimized designs for the physical layer and data link layer, while inheriting the excellent RF (radio frequency) performance of carrier-grade products. This ensures the products' stability, reliability, and adaptability to harsh environments.
One Device, Multiple Usages
Can be fixedly installed outdoors, or mounted on vehicles (ships, aircraft). It can be flexibly and quickly deployed as needed.
Diversified Services
Support voice, data, positioning, video, etc. Support VPN transmission, interconnection with systems like satellites, public networks and so on.
Flexible Networking
Ad hoc networking, with flexibly configurable carrier bandwidth. Support any network topology such as point-to-multipoint, chain relay, mesh, and hybrid structures, as well as multi-hop relaying and forwarding.
Easy Management

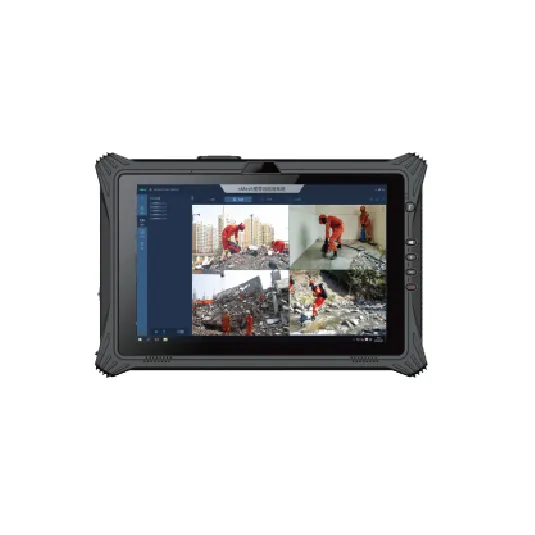

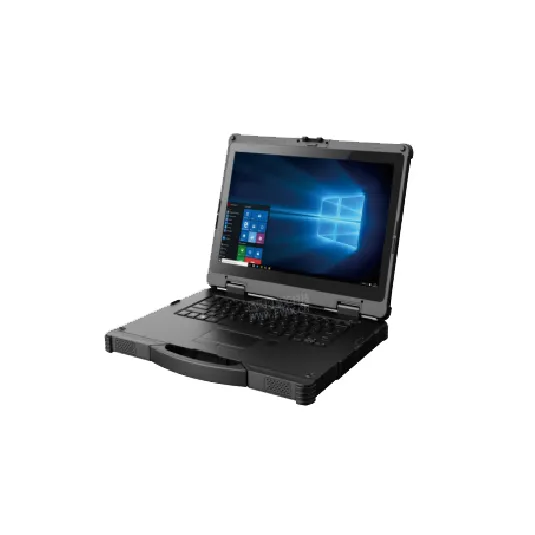

With professional dispatching and management tools, it can monitor the working status of devices at each node, wireless link quality in real-time, and view GIS positioning information, etc.
| General | |
| Frequency | 1.4GHz, Other bands customizable |
| Protocol | TDD |
| Transmission | COFDM |
| Bandwidth | 1.25MHz/2.5MHz/5MHz/10MHz/20MHz |
| Transmitting Power | 2×2W |
| Receiving Sensitivity | ≤-103dBm |
| Path | 2 paths, 2T2R |
| Data Rate | ≥50Mbps, MIMO≥90Mbps |
| Networking | Ad hoc network |
| Ad Hoc Network Maximum Nodes | More than 64 nodes |
| Hop | Suggest ≤9 hops |
| Encryption | DES,AES256 |
| Physical | |

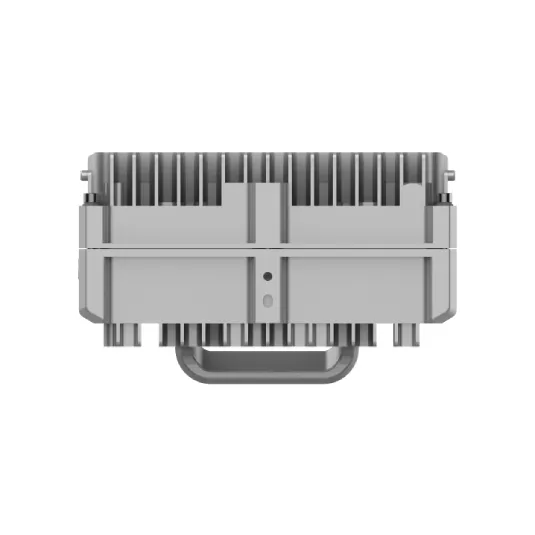

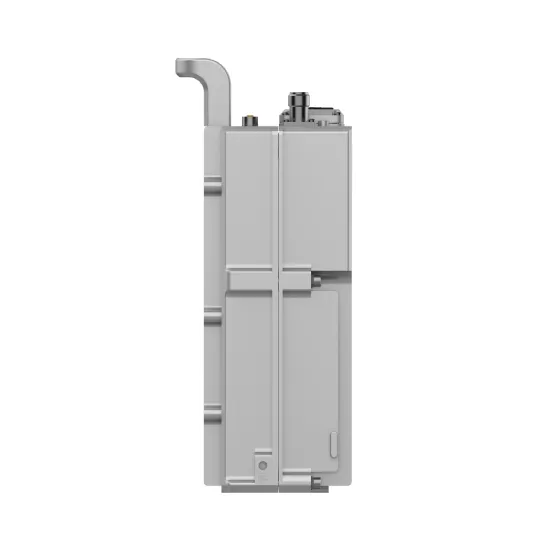

| Dimensions | 270mm×212mm×110mm (Without handle) |
| Weight | About 6kg |

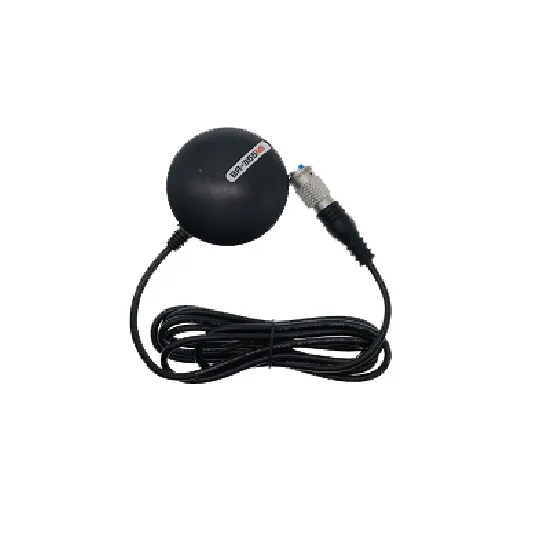

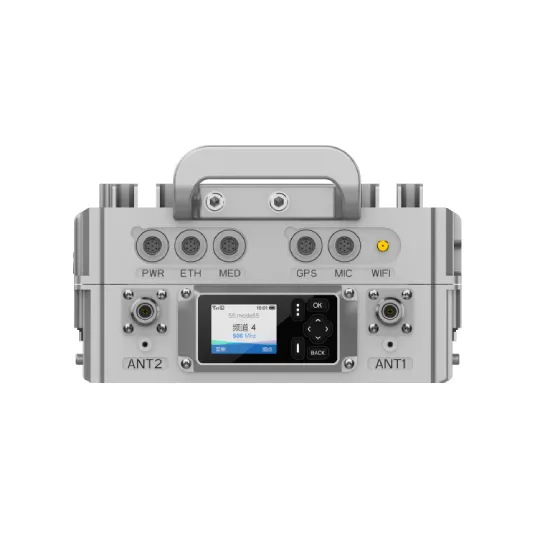

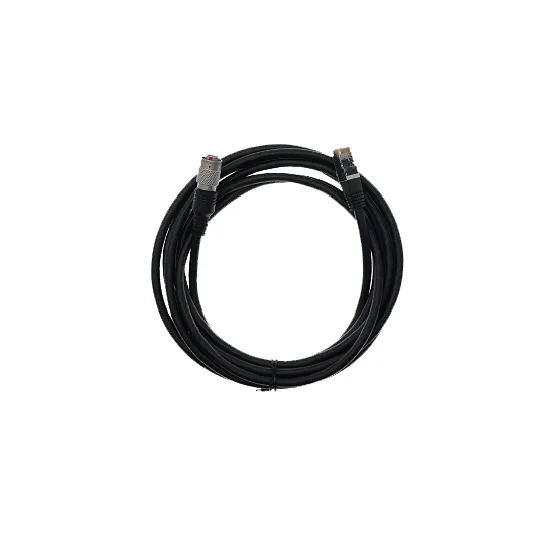

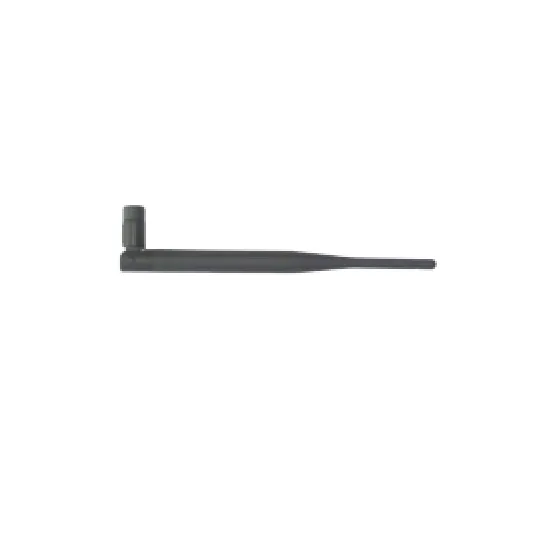

| Port | Network port: data transmission and network management, aviation plug structure Wi-Fi(SMA): connect Wi-Fi antenna RF(N): connect RF antenna GPS: GPS antenna, aviation plug structure Power port: external power supply, aviation plug structure |
| Electrical | |

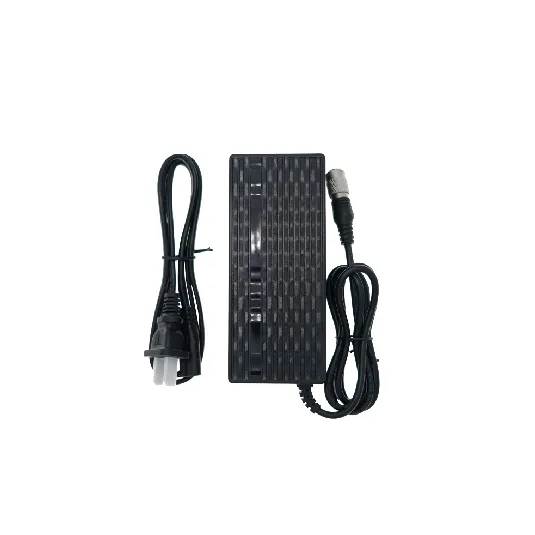

| Power Supply | DC input: 12 - 60V DC, Suggest 48V DC |
| Environmental Conditions | |
| Operating Temperature | -40℃～+60℃ |
| Storage Temperature | -50℃～+70℃ |
| Air Pressure Range | 70～106 kPa |
| Dust and Water Resistance | IP67 |
| Seismic Strengthening | GB/T 4798.7-2007 (Part7: Portable & Non-stationary Use, Above Grade 7M2) |
| System Extension (Optional) | |
| Extended Network Access | Support public 4G network, optical port extension |

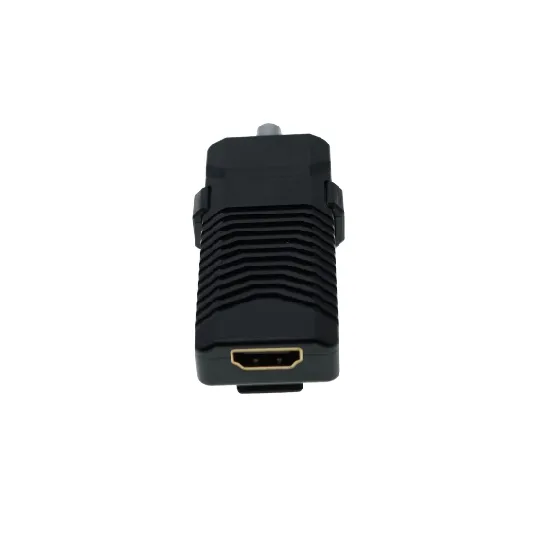

| External Video Access | Support HDMI external video access, realize the external video backhaul |
| Screen | 1.7-inch, TFT LCD, show device status, link status,and straight-line distance to adjacent device, etc. Support quick configuration via the screen and buttons |
