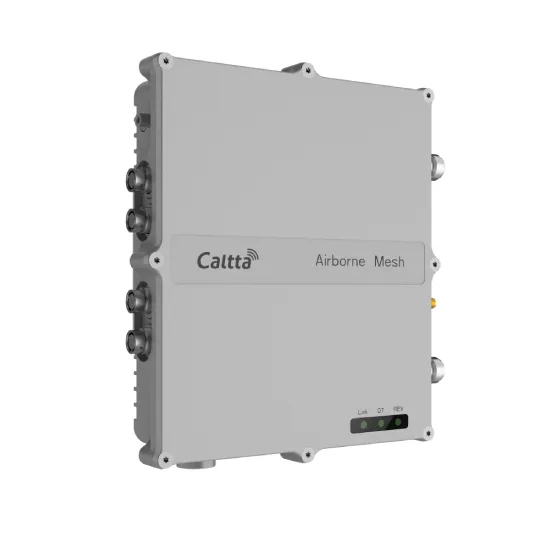

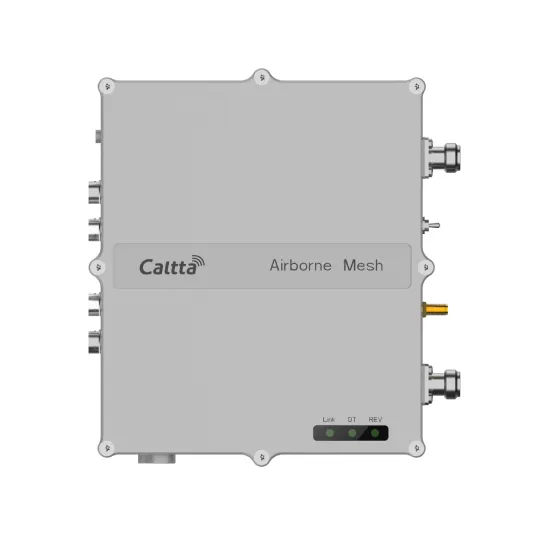

The sMesh ("s" is smart, means highly flexible) broadband ad hoc products, based on LTE, combine mature OFDM technology with flexible channel coding. They feature optimized designs for the physical layer and data link layer, while inheriting the excellent RF (radio frequency) performance of carrier-grade products. This ensures the products' stability, reliability, and adaptability to harsh environments.
One Device, Multiple Usages
Can be used on board, on vehicles, or in fixed locations, and can be deployed flexibly as needed.
Diversified Services
Support voice, data, positioning, video, etc. Support VPN transparent transmission, interconnection with systems like satellites, public networks and LTE base stations.
Flexible Networking
Ad hoc networking, with flexibly configurable carrier bandwidth. Support any network topology such as point-to-multipoint, chain relay, mesh, and hybrid structures, as well as multi-hop relaying and relay forwarding.
Easy Mangement

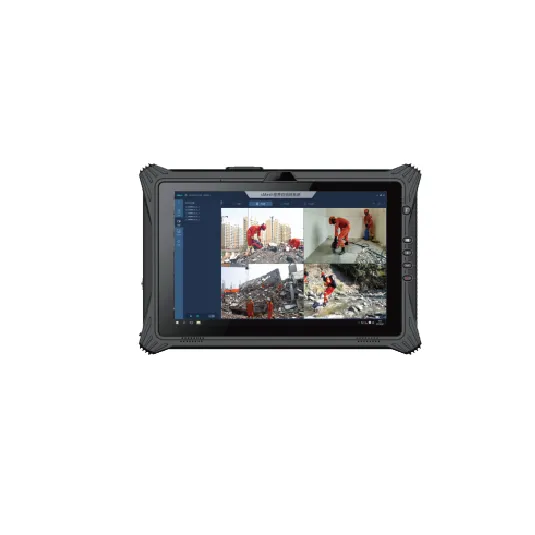

With professional dispatching and management tools, it can monitor the working status of devices at each node, wireless link quality in real-time, and view GIS positioning information, etc.
| General | |
| Frequency | 1.4GHz, Other bands customizable |
| Protocol | TDD |
| Transmission | COFDM |
| Bandwidth | 1.25MHz/2.5MHz/5MHz/10MHz/20MHz |
| Transmitting Power | 2×2W |
| Receiving Sensitivity | <=103dBm |
| Path | 2 paths, 2T2R |
| Data Rate | >50Mbps, MIMO>90Mbps |
| Networking | Ad hoc network |
| Ad Hoc Network Maximum Nodes | More than 64 nodes |
| Hop | Suggest<9 hops |
| Encryption | DES/AES256 |
| Physical | |
| Dimensions | 215mm×185mm×46mm (Without connector) |
| Weight | About 1.5kg |

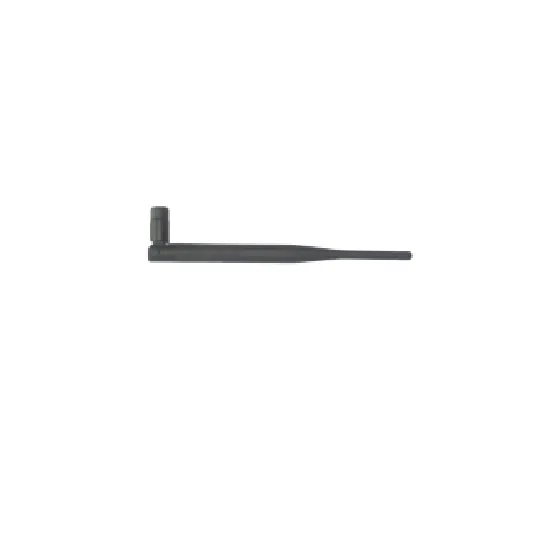

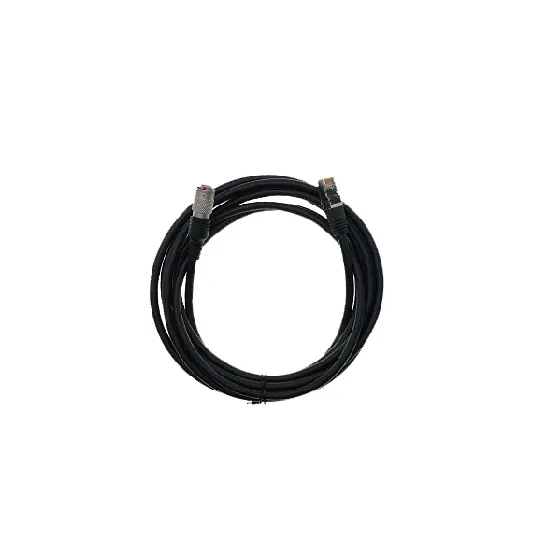

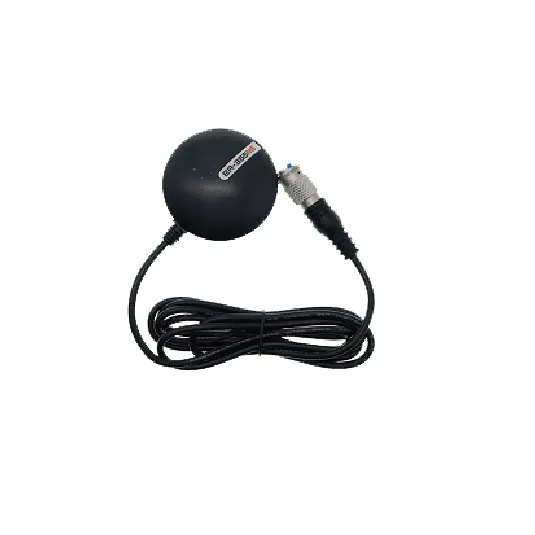

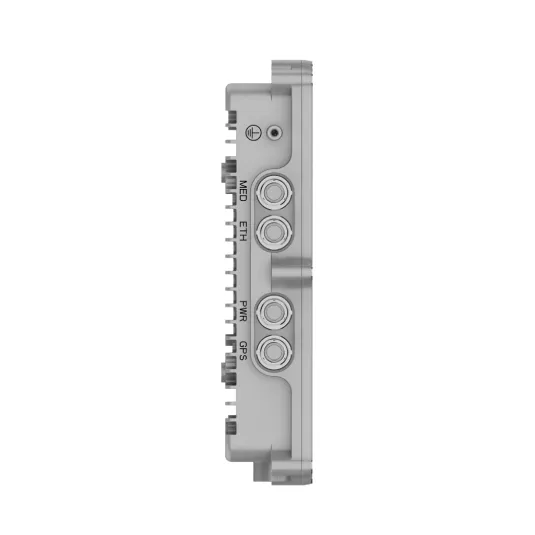

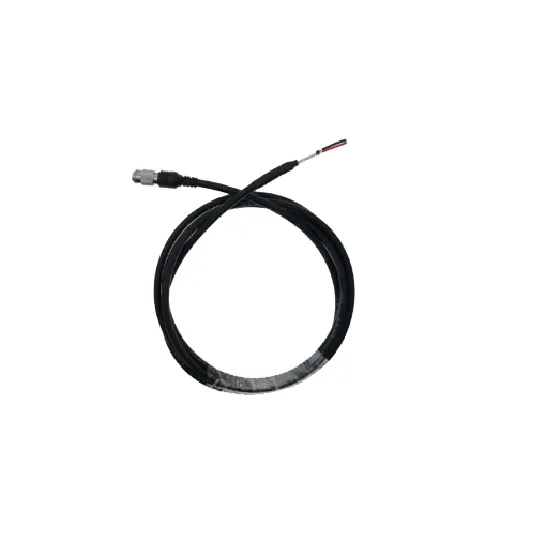

| Port | Network port: data transmission and network management, aviation plug structure Wi-Fi(SMA): connect Wi-Fi antenna RF(N): connect RF antenna GPS: GPS antenna, aviation plug structure Power port: external power supply, aviation plug structure. |
| Electrical | |
| Power Supply | Adapter: 100~240V AC 50/60Hz DC input: 27~36V DC |
| Environmental Conditions | |
| Operating Temperature | -40°C~ +60°C |
| Storage Temperature | -50°C~ +70°C |
| Air Pressure Range | 70 ~ 106 kPa |
| Dust and Water Resistance | IP67 |
| Seismic Strengthening | GB/T 4798.7-2007 (Part 7: Portable & Non-stationary Use, Above Grade 7M2) |
Ready to Talk to One of the Caltta Experts?
Tel: +86-0755-86556659
E-mail: sales@caltta.com
12F, Building G2, International E-City, Nanshan, Shenzhen, China
+86-0755-86556659

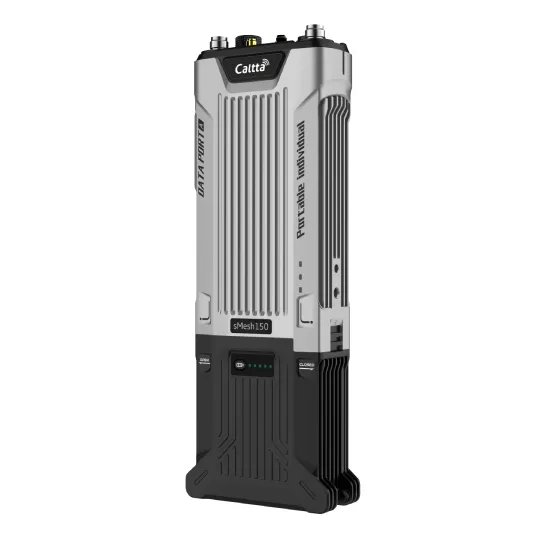

.webp "ZXIMCU sMesh150 Broadband Mesh Individual Device")
