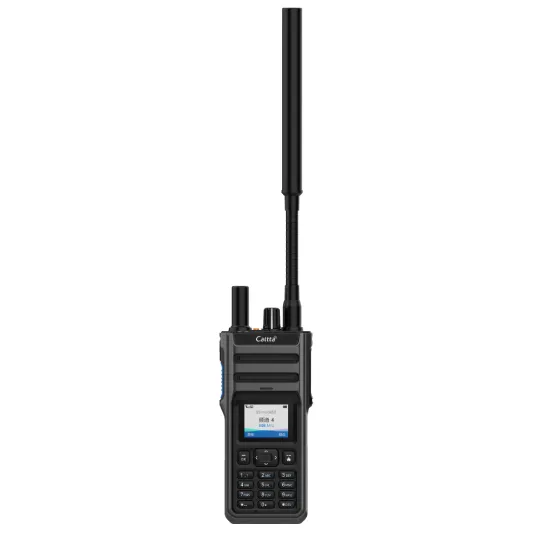

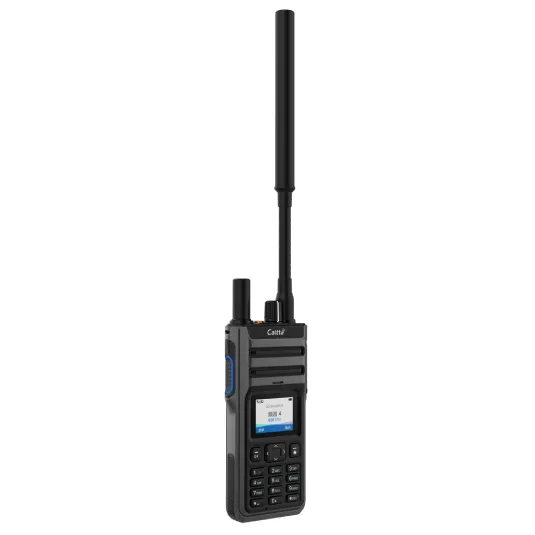

Caltta ZXIMCU sMesh390 Broadband Mesh Radio

The sMesh ("s" is smart, means highly flexible) broadband ad hoc network system adopts centerless and co-frequency ad hoc networking technology and a distributed network architecture. It supports arbitrary network topologies and multi-hop relaying, and can provide users with reliable, timely, efficient, and secure all-IP integrated multimedia services such as clear voice and broadband data under non-line-of-sight and high-speed movement conditions.

ZXIMCU sMesh390 broadband mesh radio features small size and light weight. It can be used independently, or in mixed networking with sMesh series ad hoc network systems such as sMesh100 and sMesh750 to achieve network expansion. It can fully meet the need of going deep into the emergency site, dense crowds or buildings due to the great improvement of its deep communication capability

Features

Specifications

Documents

Features of ZXIMCU sMesh390 Broadband Mesh Radio

Quick Startup
No configuration required, one-click startup, connect to the internet in no time.
Simple Operation
With built-in Wi-Fi module, it can be connected with mobile devices, laptops or PADs through Wi-Fi, easy and convenient.
Diversified Services
Support services including voice, video, data, positioning, etc. Able to be connected to satellite network, public network, LTE base stations, etc.
Easy Mangement
Support monitor the working status of each node device, wireless link quality in real-time, and view GIS positioning information, etc.
High Resistance
When a node in the network fails or the connection is interrupted, the system will re-select the best path for transmission to achieve network self-healing.
Flexible Networking
With centerless and co-frequency ad hoc network, and flexible and configurable carrier bandwidth, it supports flexible and dynamic networking modes including: chain, star, tree, hybrid, etc.

Specifications of ZXIMCU sMesh390 Broadband Mesh Radio

General
Frequency	1.4GHz, Other bands customizable
Protocol	TDD
Transmission	COFDM
Bandwidth	1.25MHz/2.5MHz/5MHz/10MHz/20MHz
Transmitting Power	Typical 500mW, Max 1W
Receiving Sensitivity	≤-103dBm
Rate	≥25Mbps
Networking	Ad hoc network
Ad Hoc Network Maximum Nodes	More than 64 nodes
Hop	Suggest ≤9 hops
Encryption	DES/AES256
Wi-Fi	2.4GHz/5.8GHz
Bluetooth	Support
Voice	Built-in 2W speaker, MIC
Basic Functions
Data	Support both wired and wireless IP data transmission
Voice	Support voice calls

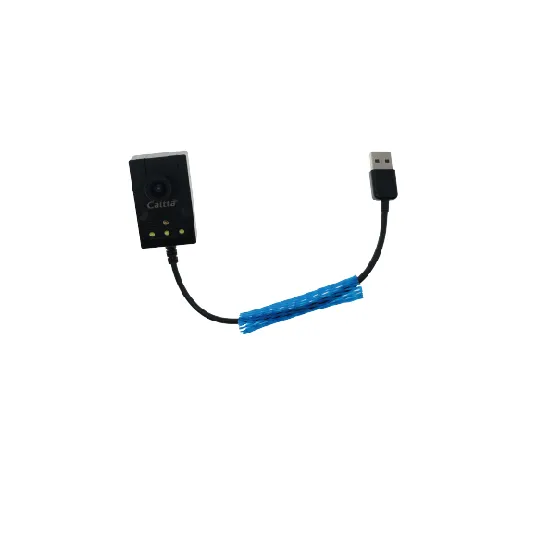

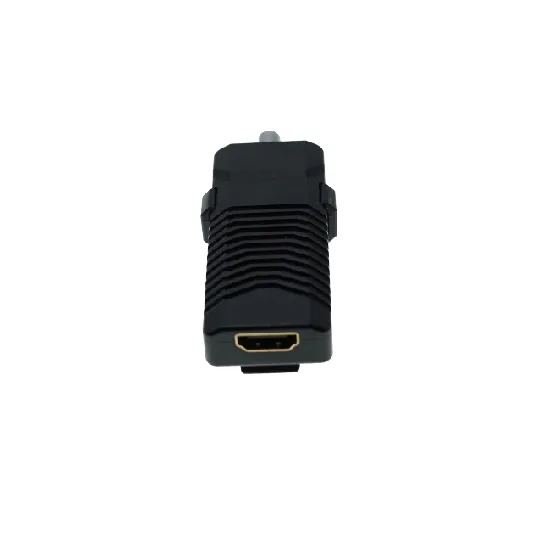

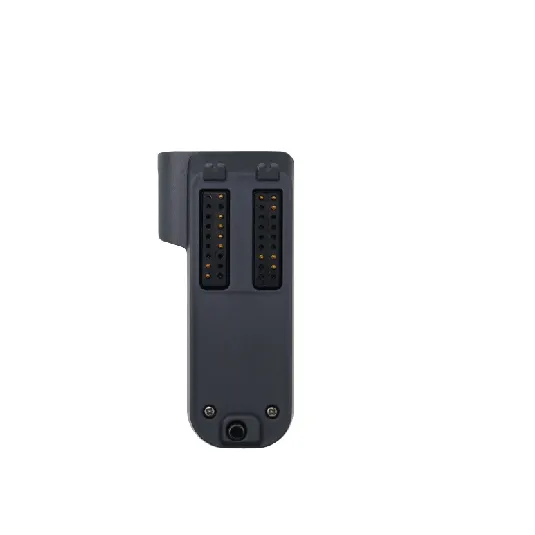

Image	Realize image transmission via external camera or HDMI module
Position	GPS
Environmental Conditions
Operating Temperature	-30℃~+60℃
Storage Temperature	-50℃~+70℃
Air Pressure Range	70-106 kPa
Dust and Water Resistance	IP67
Physical

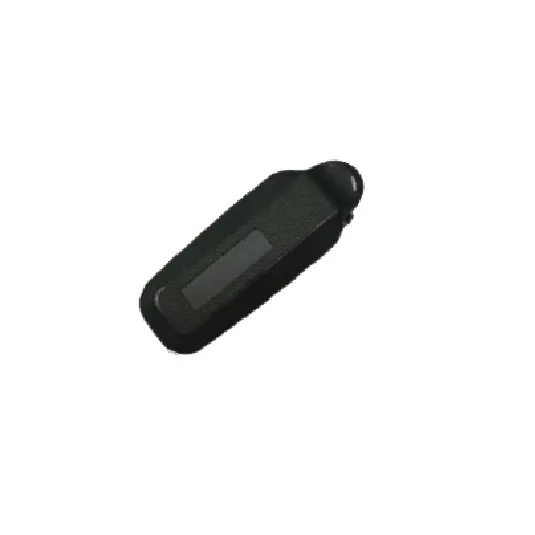

Dimensions	About 158mm×75mm×33mm (With battery, without antenna and belt clip)
Weight	About 450g (With battery, without antenna and belt clip)
Screen	1.7-inch, TFT LCD

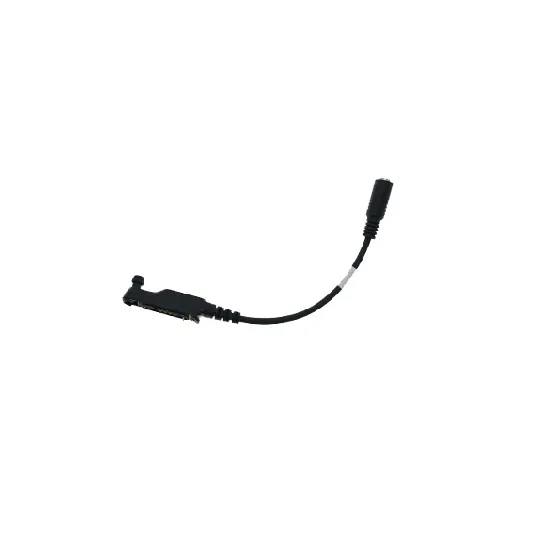

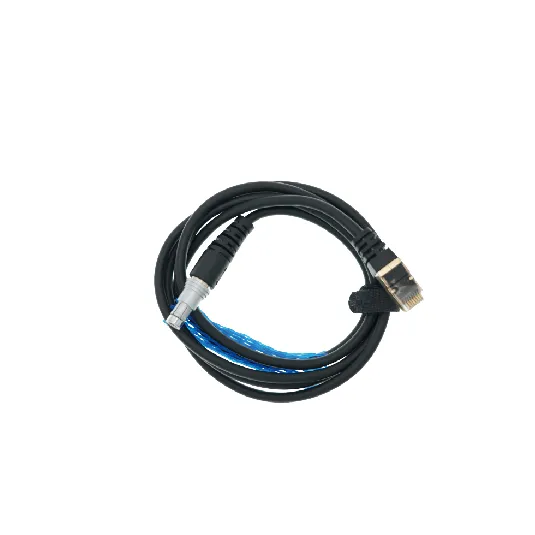

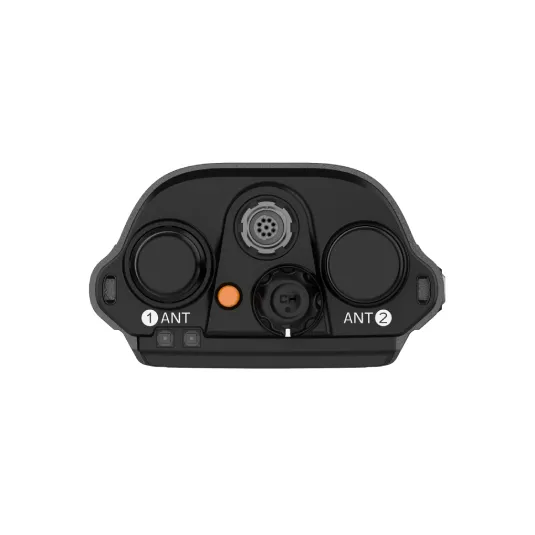

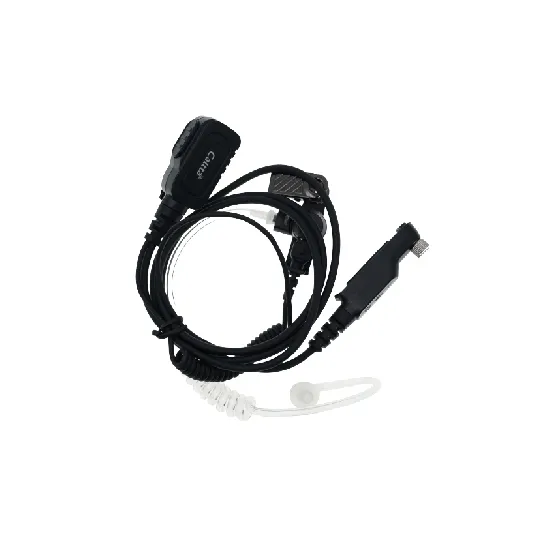

Port	Antenna port: RF antenna Network port: data transmission and network management, aviation plug structure USB port: connect external devices Earphone port: connect earphones

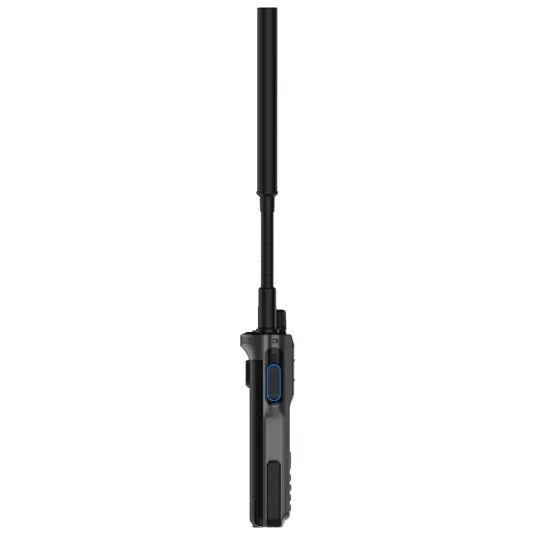

Buttons	Front Buttons: Enter button, Back button, Navigation button. Full-function numeric keypad. Side Buttons: PTT button, Power on button (can also adjust the volume).
System Management
Unified Network Management	All nodes management, supports structures such as point-to-point, point-to-multipoint, chain, mesh, and hybrid topologies. Support check the communication quality between nodes in real time. Support the frequency scanning and allow real-time monitoring of interference in the frequency. Support GIS map positioning, allowing real-time viewing of the location of each node.
Electrical

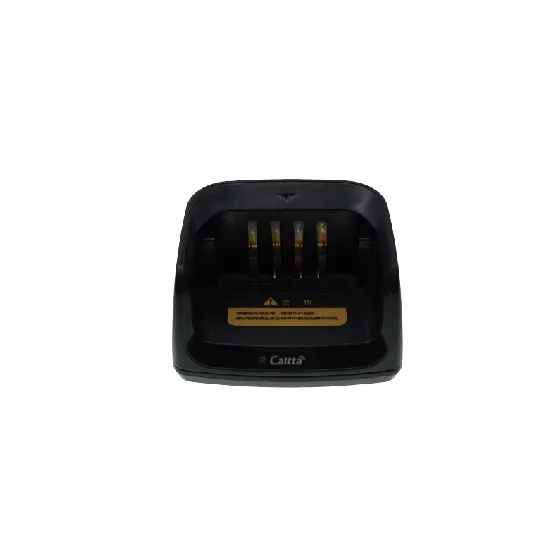

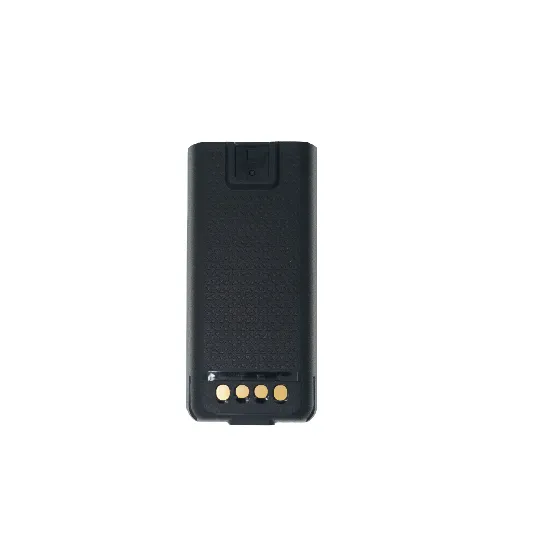

Power Supply	A detachable battery, 7.6V, 4000mAh
Working Time	Up to 6 hours
