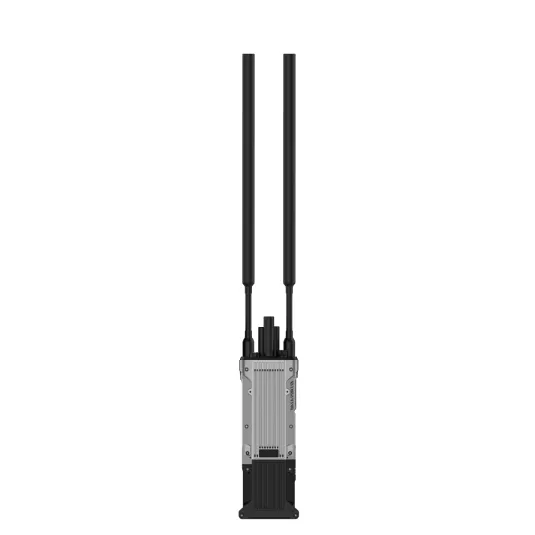

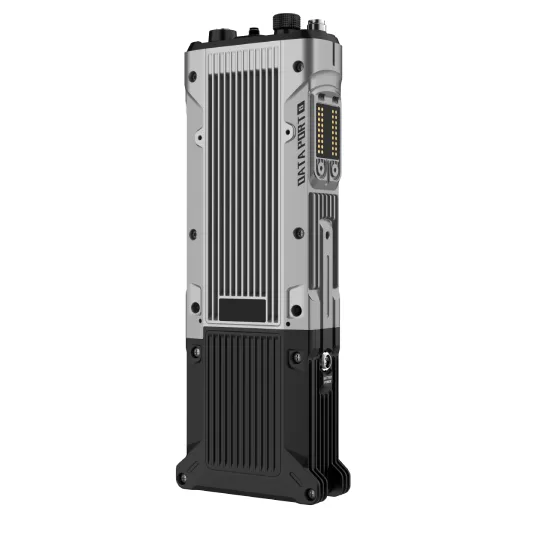

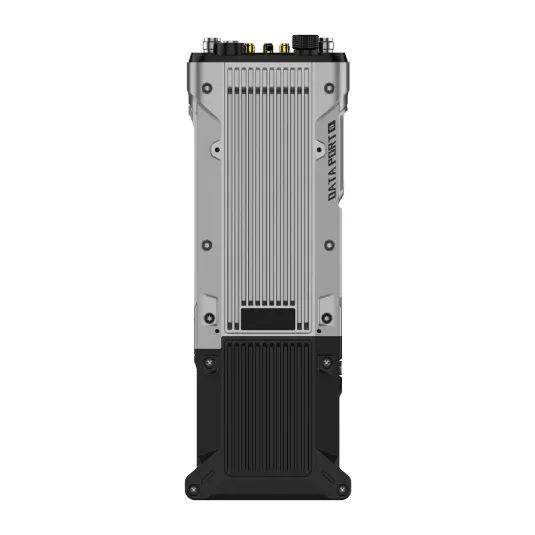

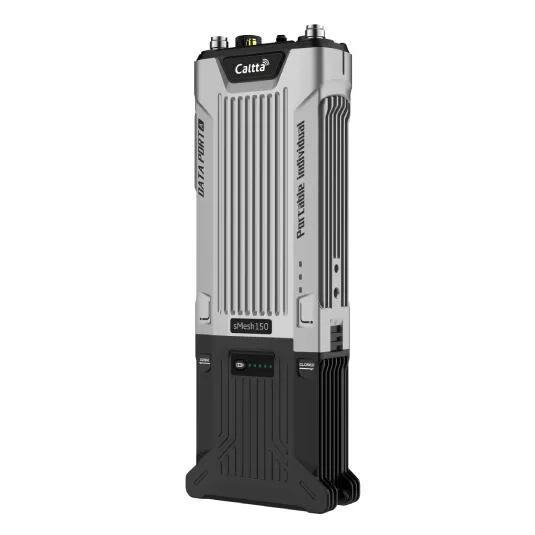

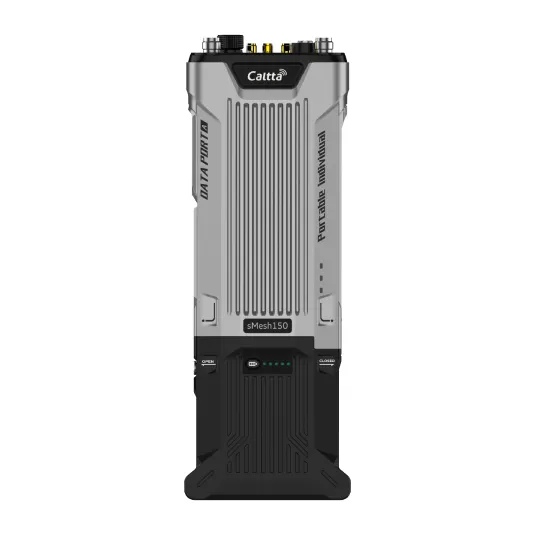

Caltta ZXIMCU sMesh150 Broadband Mesh Individual Device

The sMesh ("s" is smart, means highly flexible) broadband ad hoc network system adopts centerless and co-frequency ad hoc networking technology and a distributed network architecture. It supports arbitrary network topologies and multi-hop relaying, and can provide users with reliable, timely, efficient, and secure all-IP integrated multimedia services such as clear voice and broadband data under non-line-of-sight and high-speed movement conditions.

Features

Specifications

Accessories

Documents

Features of ZXIMCU sMesh150 Broadband Mesh Individual Device

High Communication Capability
Excellent Performance
Adopt an advanced SDR architecture, based on carrier-grade LTE technology, and combine mature COFDM technology with flexible channel coding, thus achieving excellent transmission performance. The single-hop throughput rate can reach 90Mbps, and the single-hop communication distance can reach 100km.
Flexible Ad Hoc Networking
High Communication Anti-destruction
Support more than 64 nodes, with automatic link switching between remaining nodes if one goes offline to ensure anti-destruction. Its anti-interference mechanism enhances data transmission reliability under severe interference. Nodes moving faster than 300km/h maintain connections without packet loss, leaving services unaffected.
Multiple Optional Functions
Meet the Needs of Different Scenarios
Support optional adaptive frequency selection, space division multiplexing, and MIMO functions, enhancing link stability and reliability. Optional device silence and frequency hopping functions improve the communication security of the system.
Strong Expandability
Abundant Interfaces and Accessories
Support standard Ethernet and Wi-Fi interfaces, enabling IP data communication between nodes with non-differentiated transparent transmission, and interconnects with satellite, public/private networks, LTE systems, etc. The device can connect to HDMI modules, USB cameras, handset/shoulder microphones, with strong functional expandability and audio-visual capabilities.

Specifications of ZXIMCU sMesh150 Broadband Mesh Individual Device

General
Frequency	1.4GHz, Other bands customizable
Protocol	TDD
Transmission	COFDM
Bandwidth	1.25MHz/2.5MHz/5MHz/10MHz/20MHz
Transmitting Power	2 × 2W
Receiving Sensitivity	≤ -103dBm
Data Rate	≥50Mbps, MIMO ≥90Mbps
Networking	Ad hoc network
Ad Hoc Network Maximum Nodes	More than 64 nodes
Hop	Suggest≤9hops
Encryption	DES/AES256

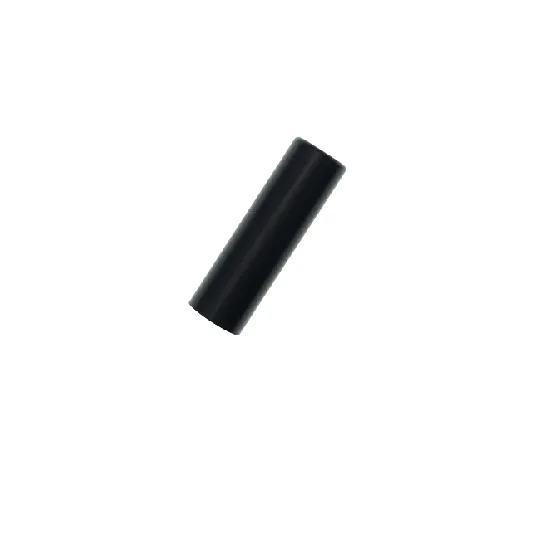

Public Network	public network 4G
Path	2 paths, 2T2R
Environmental Conditions
Operating Temperature	-40°C~+60°C
Storage Temperature	-50°C~+70°C
Air Pressure Range	70~106 kPa
Dust and Water Resistance	IP67
Seismic Strengthening	GB/T 4798.7-2007 (Part 7: Portable & Non-stationary Use, Above Grade 7M2)
Basic Functions
Data	Support IP data transmission
Voice	Support voice calls
Image	Realize image transmission via external camera or HDMI module
Position	GPS
Wi-Fi	Support Wi-Fi
Physical
Dimensions	About 265mm × 98mm × 43mm
Weight	About 1.2kg

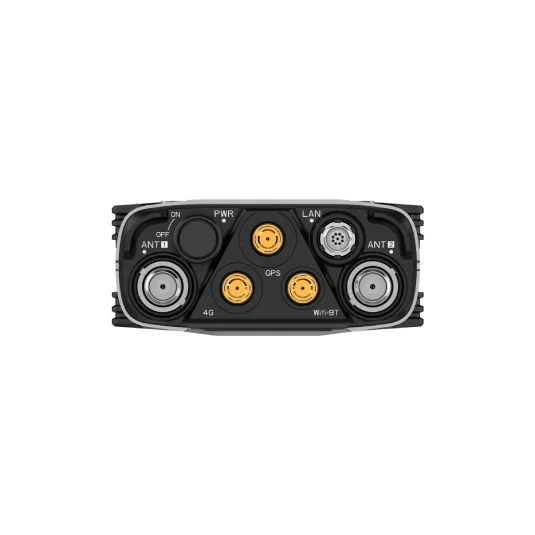

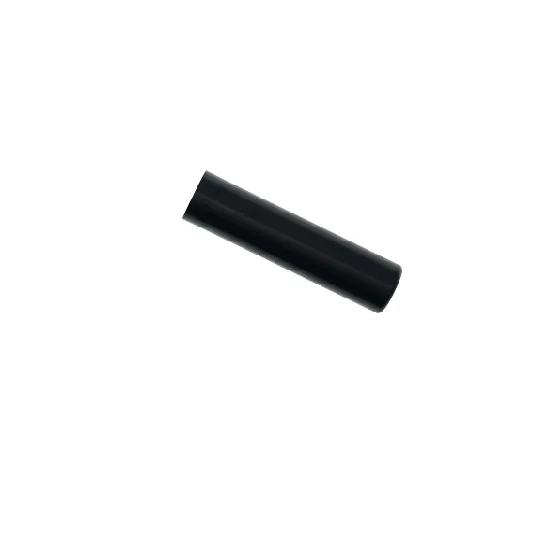

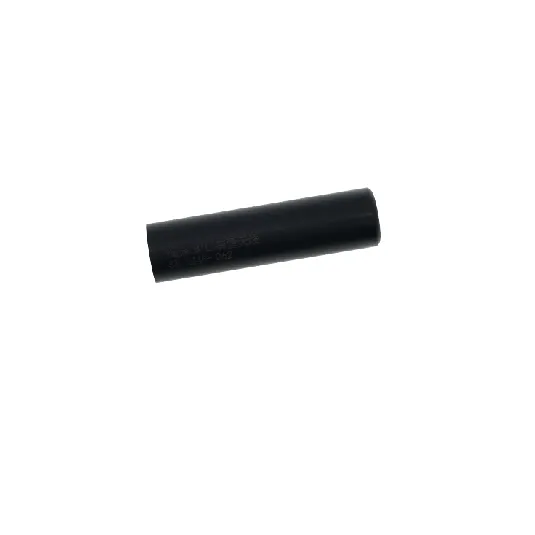

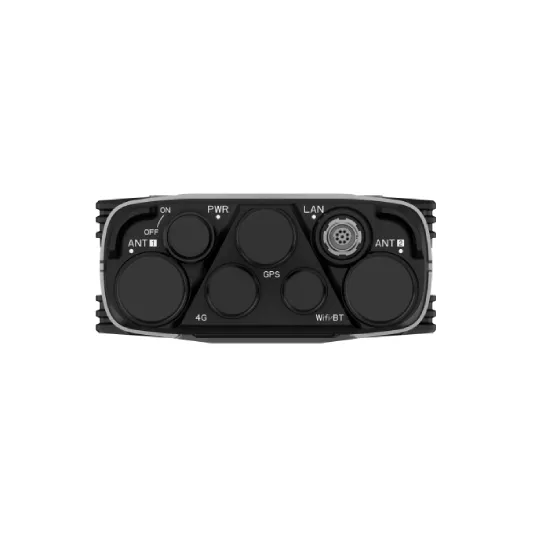

Port	Network port: data transmission and network management Wi-Fi port: Wi-Fi Antenna Voice port: headphone (18PIN) Video port: external camera (18PIN) RF port: RF antenna GPS port: GPS antenna Switch: main power switch
System Management
Unified Network Management	All nodes management, supports structures such as point-to-point, point-to-multipoint, chain, mesh, and hybrid topologies. Support check the communication quality between nodes in real time. Support the frequency scanning and allow real-time monitoring of interference in the frequency. Support GIS map positioning, allowing real-time viewing of the location of each node.
Electrical

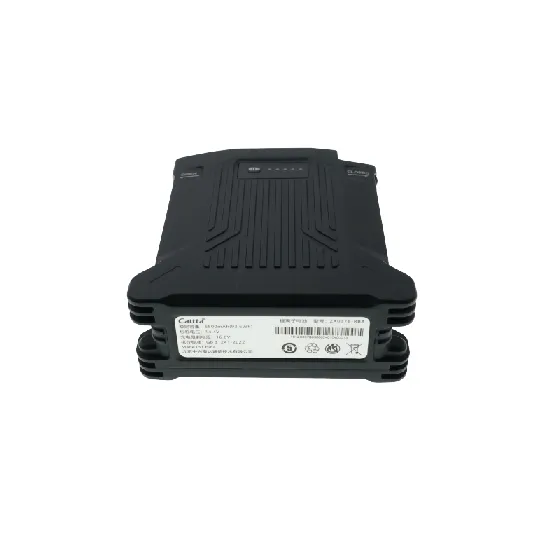

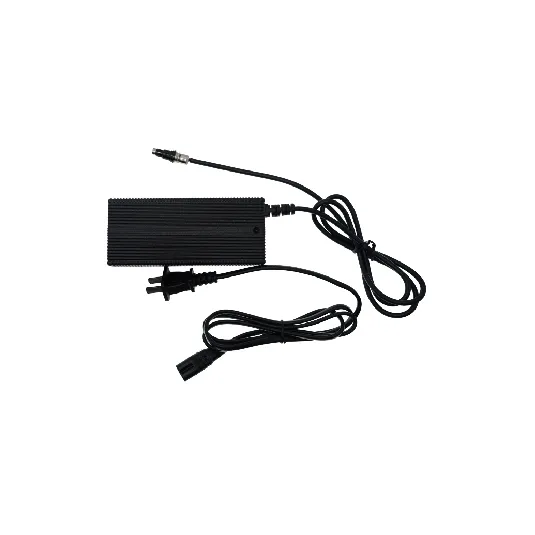

Power Supply	With a 6500mAh detachable battery, also support external power supply. Adapter: 100-240VAC 50/60Hz DC input: 12VDC
Working Time	6 hours
System Extension (Optional)
Functional Extension	Support optional adaptive frequency selection, space division multiplexing, MIMO, device silence, and frequency hopping.

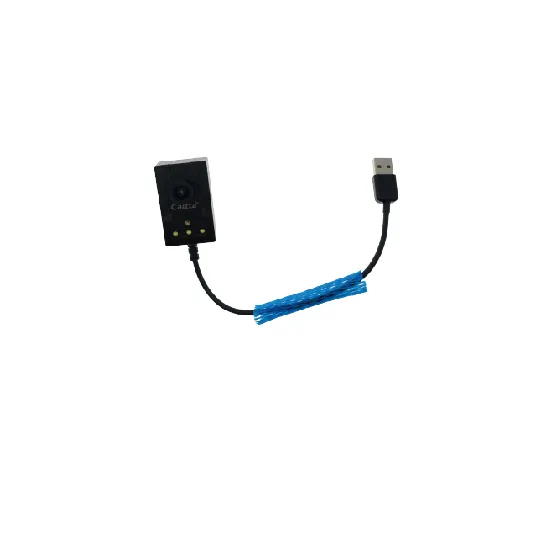

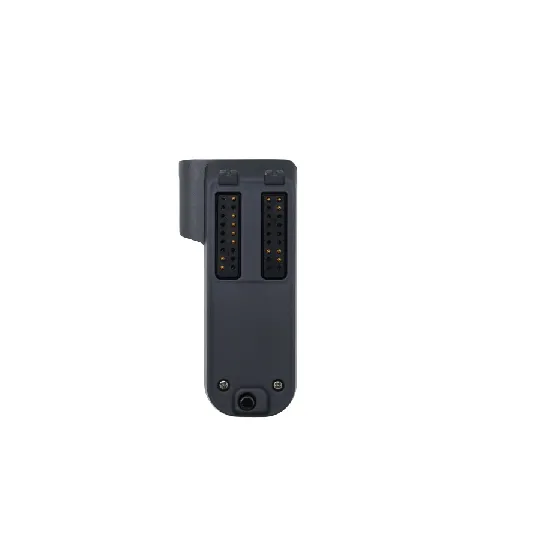

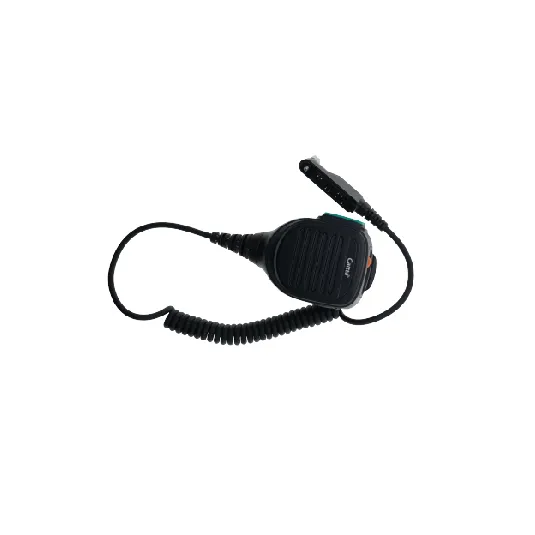

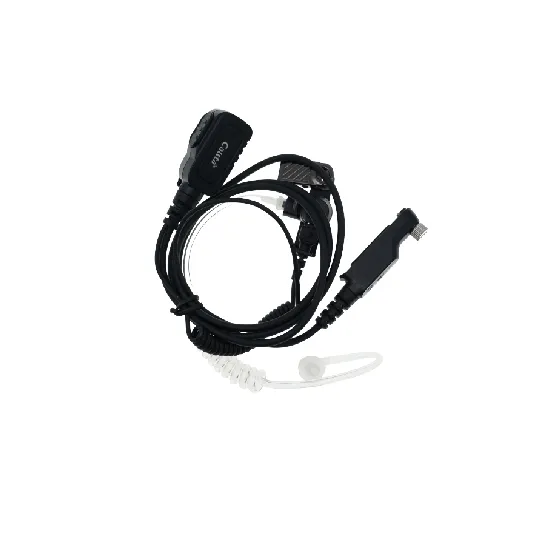

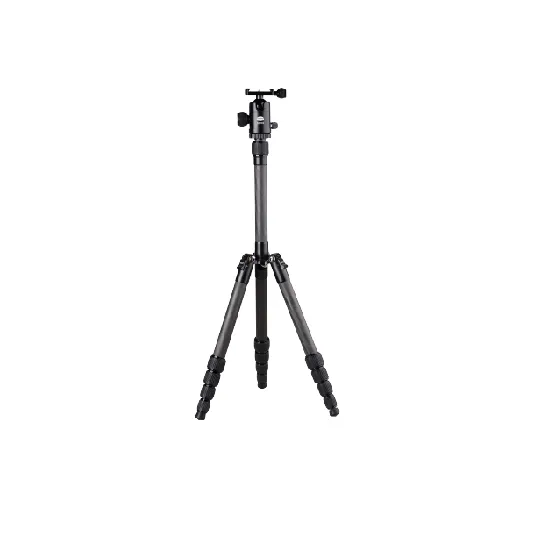

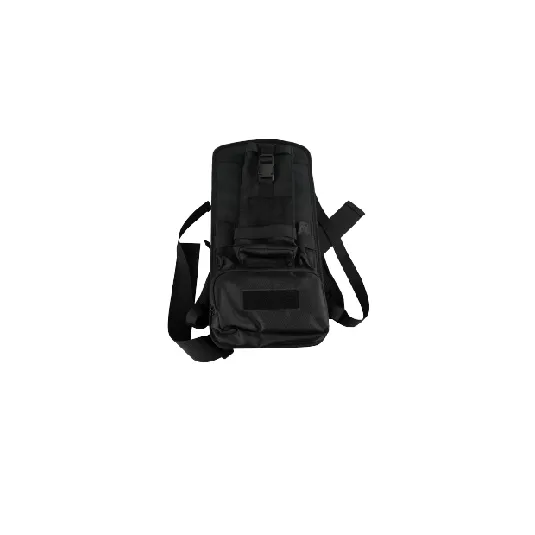

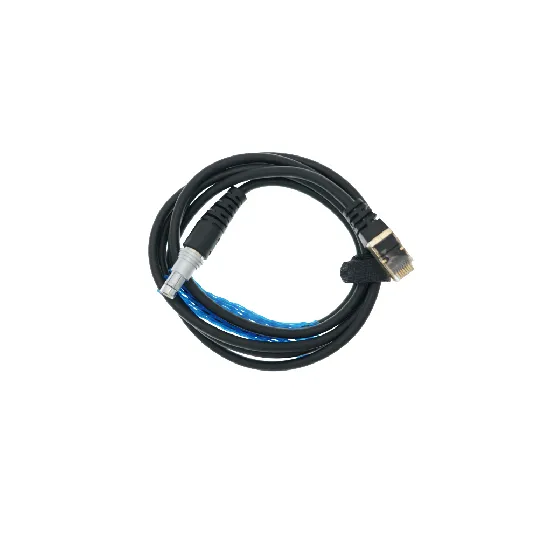

Accessory Extension	Support optional accessories such as HDMI module, USB HD camera, headset/hand microphone, etc.
