Caltta sMesh100 Broadband Mesh Manpack, Broadband Mesh

Caltta ZXIMCU sMesh100 Broadband Mesh Manpack Device

The sMesh ("s" is smart, means highly flexible) broadband ad hoc network system adopts centerless and co-frequency ad hoc networking technology and a distributed network architecture. It supports arbitrary network topologies and multi-hop relaying, and can provide users with reliable, timely, efficient, and secure all-IP integrated multimedia services such as clear voice and broadband data under non-line-of-sight and high-speed movement conditions.

Features

Specifications

Accessories

Documents

Features of ZXIMCU sMesh100 Broadband Mesh Manpack Device

Quick Startup
No configuration required, one-click startup, connect to the internet in no time.
Frequency Sweeping
Support real-time frequency sweeping to check wireless interference.
Easy Management
Can monitor the working status of devices at each node in real time. the quality of wireless links, and view GIS positioning information, etc.
High Reliability
Waterproof and dustproof level (IP67), high vibration resistance, and operating temperature range of -40℃ to 60℃. Withstand diverse extreme environments.
High Resistance
When a node in the network fails or the connection is interrupted, the system will re-select the best path for transmission to achieve network self-healing.
Multiple Deployment
Support manpack, vehicle-mounted, UAV-mounted use, and can be deployed flexibly as needed. Meet communication needs on land, water, and in the air.
Flexible Networking
With centerless and co-frequency ad hoc network, and flexible and configurable carrier bandwidth, it supports flexible and dynamic networking modes including: chain, star, tree, hybrid, etc.
Diversified Services
Support services including voice, video, data, positioning, etc. Able to be connected to satellite network, public network, LTE base stations, etc.

Specifications of ZXIMCU sMesh100 Broadband Mesh Manpack Device

General
Frequency	1.4GHz, Other bands customizable
Protocol	TDD
Transmission	COFDM
Bandwidth	1.25MHz/2.5MHz/5MHz/10MHz/20MHz
Transmitting Power	Dual receive and dual transmit
Receiving Sensitivity	≤-103dBm
Data Rate	≥50Mbps, MIMO≥90Mbps
Networking	Ad hoc network
Ad Hoc Network Maximum Nodes	More than 64 nodes
Hop	Suggest≤9 hops
Encryption	DES/AES256

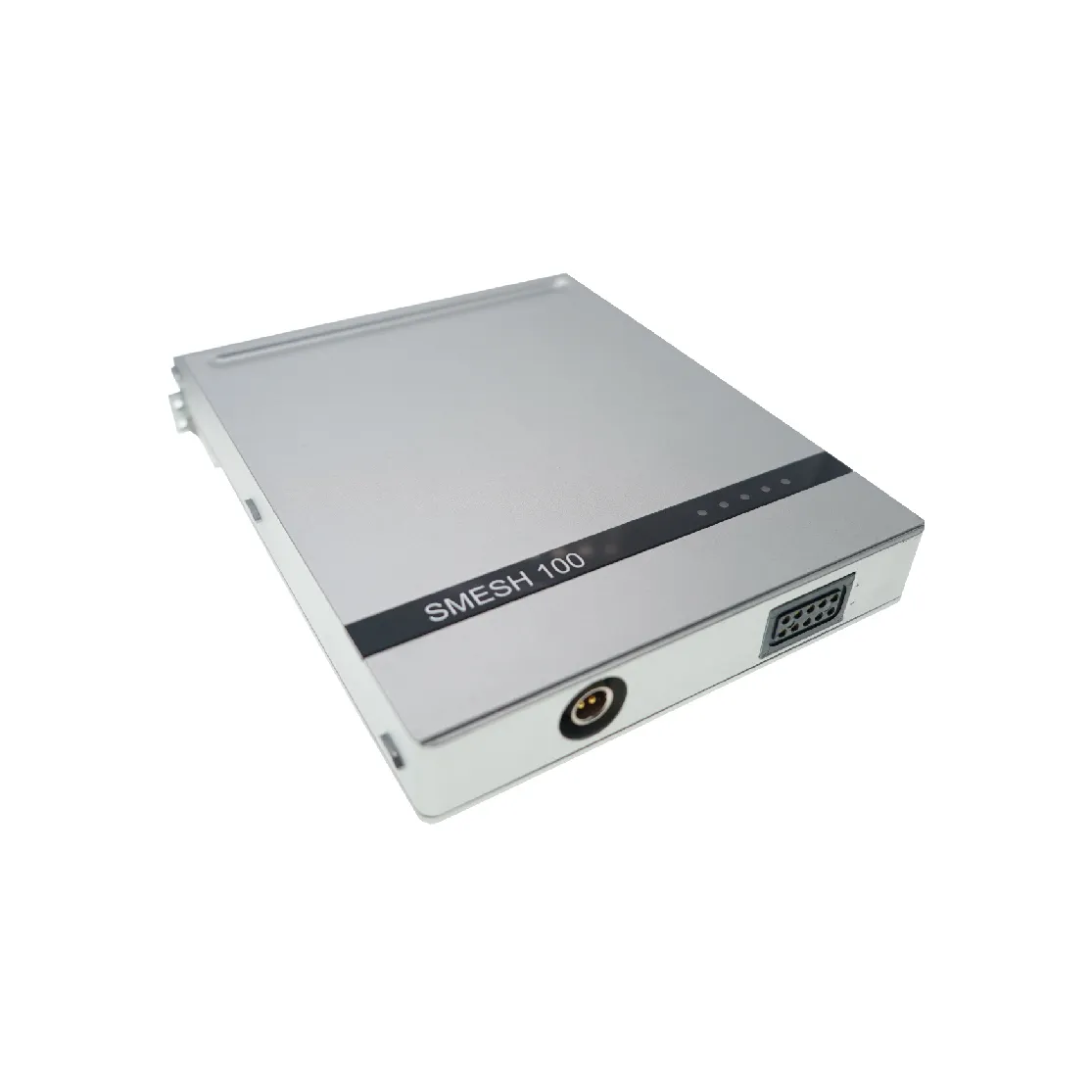

Power Supply	With a detachable battery, also support external power supply DC input: 27-36VDC
Working Time	12 hours
Environmental Conditions
Operating Temperature	-40℃～+60℃
Storage Temperature	-50℃～+70℃
Air Pressure Range	70～106 kPa
Dust and Water Resistance	IP67
Seismic Strengthening	GB/T 4798.7-2007 (Part 7: Portable & Non-stationary Use, Above Grade 7M2)
Physical
Dimensions	272mm×180mm×68mm (Without handle)
Weight	About 4kg (With battery)

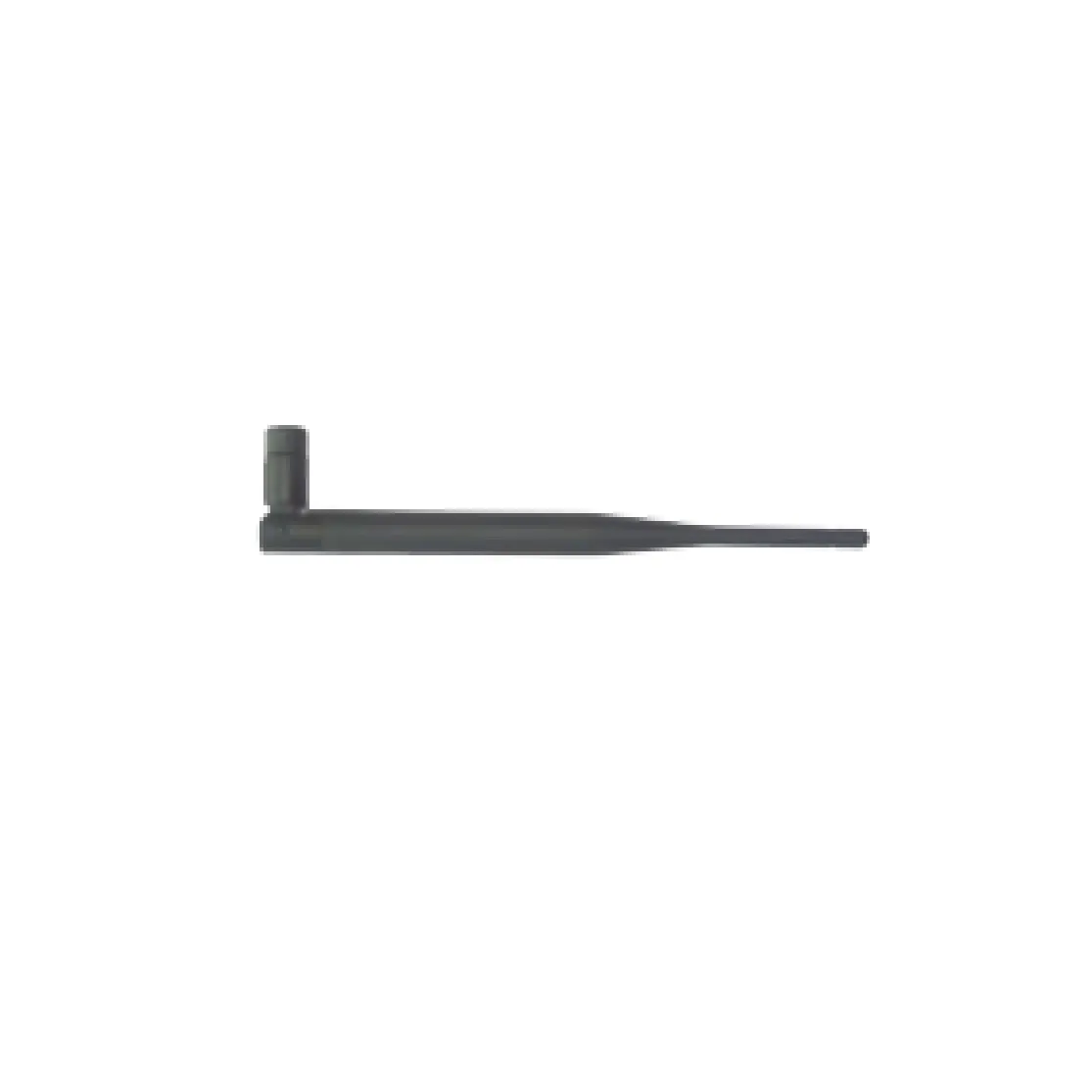

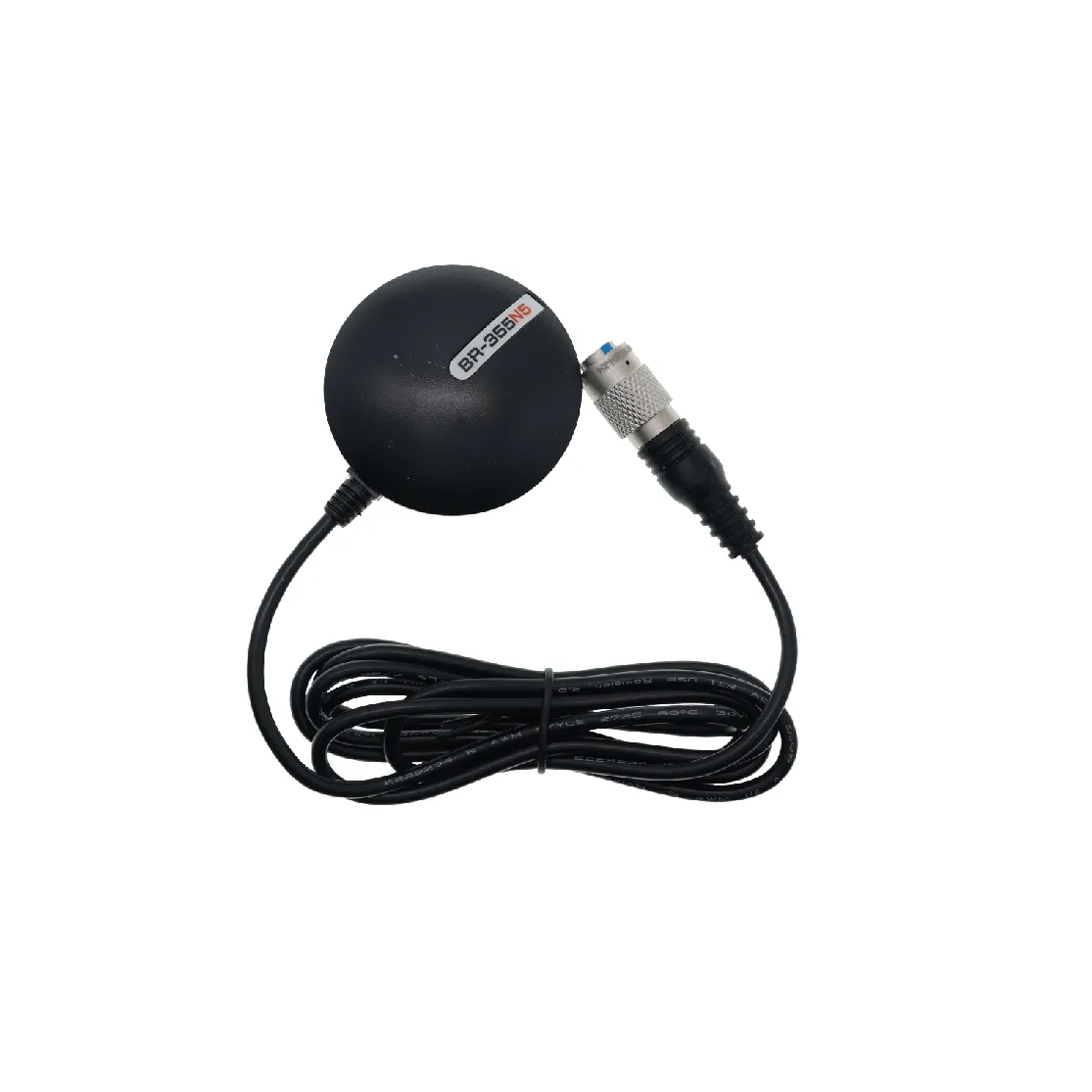

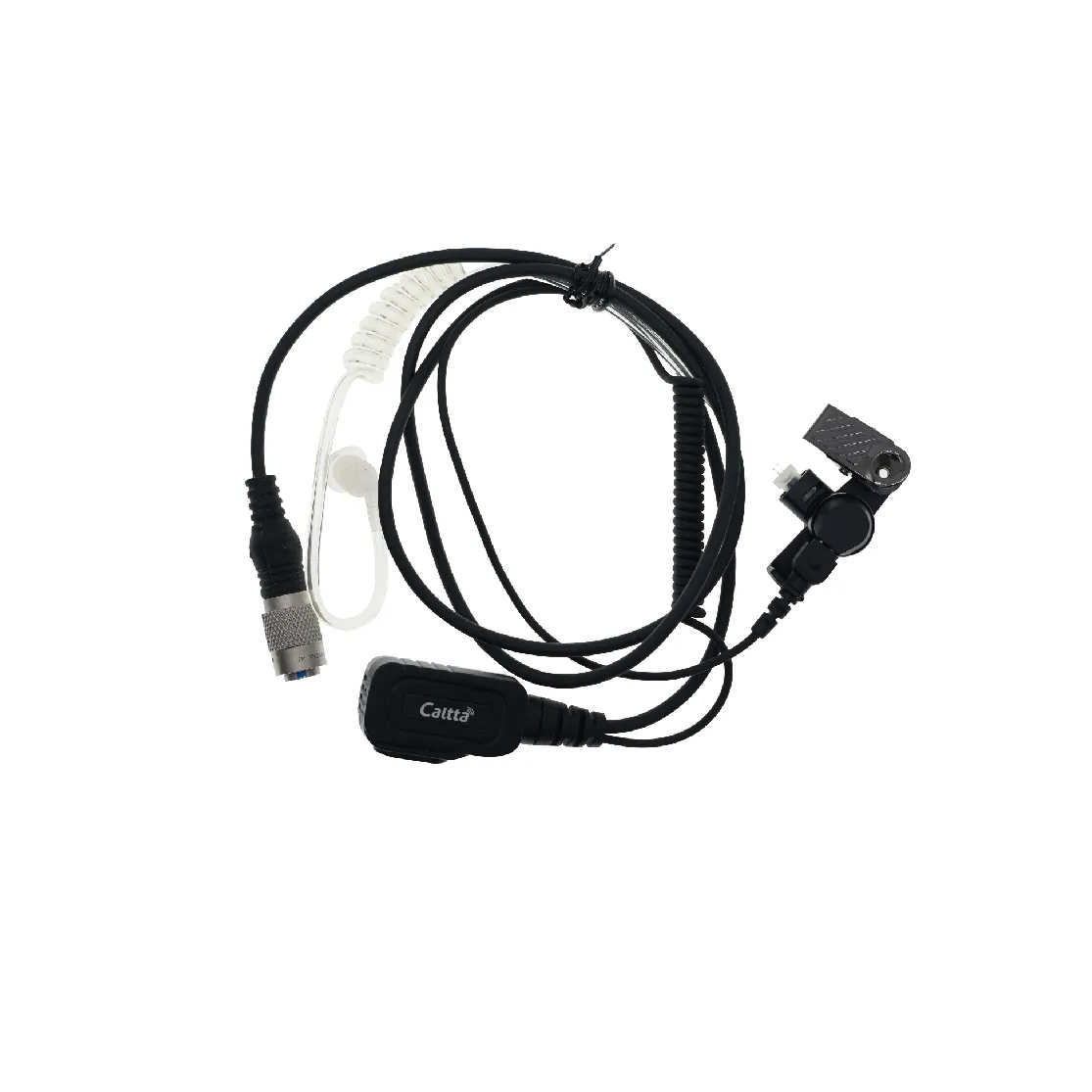

Port	Network port: data transmission and network management Wi-Fi (SMA): connect Wi-Fi antenna Audio: connect headphone RF(N): connect RF antenna GPS: GPS antenna, aviation plug structure Power port: external power supply Switch: main power switch
System Management
Unified Network Management	All nodes management, supports structures such as point-to-point, point-to-multipoint, chain, mesh, and hybrid topologies Support check the communication quality between nodes in real time Support the frequency scanning and allow real-time monitoring of interference in the frequency Support GIS map positioning, allowing real-time viewing of the location of each node Support multi-channel voice and data services
System Extension (Optional)

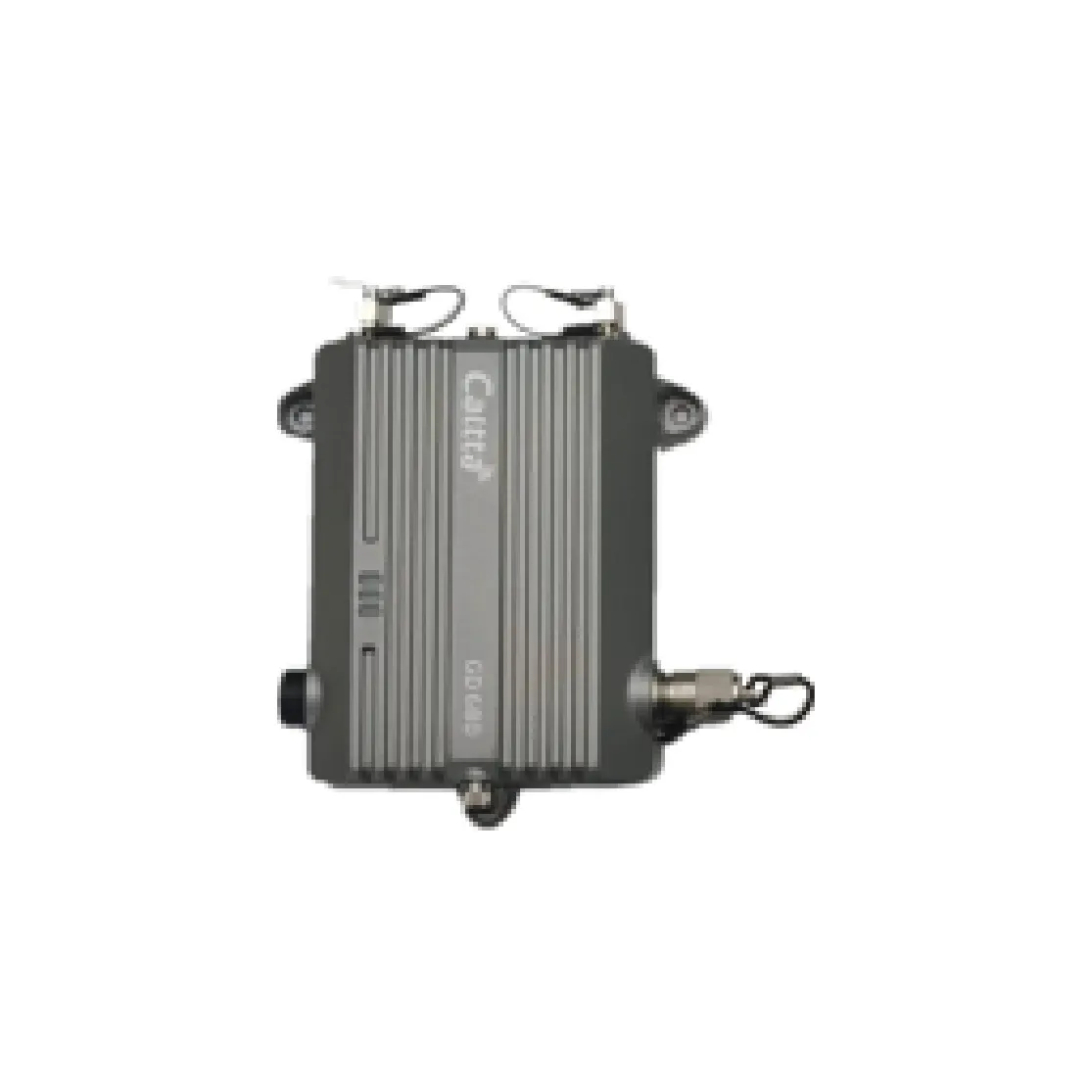

Public Network Access	Support 4G public network

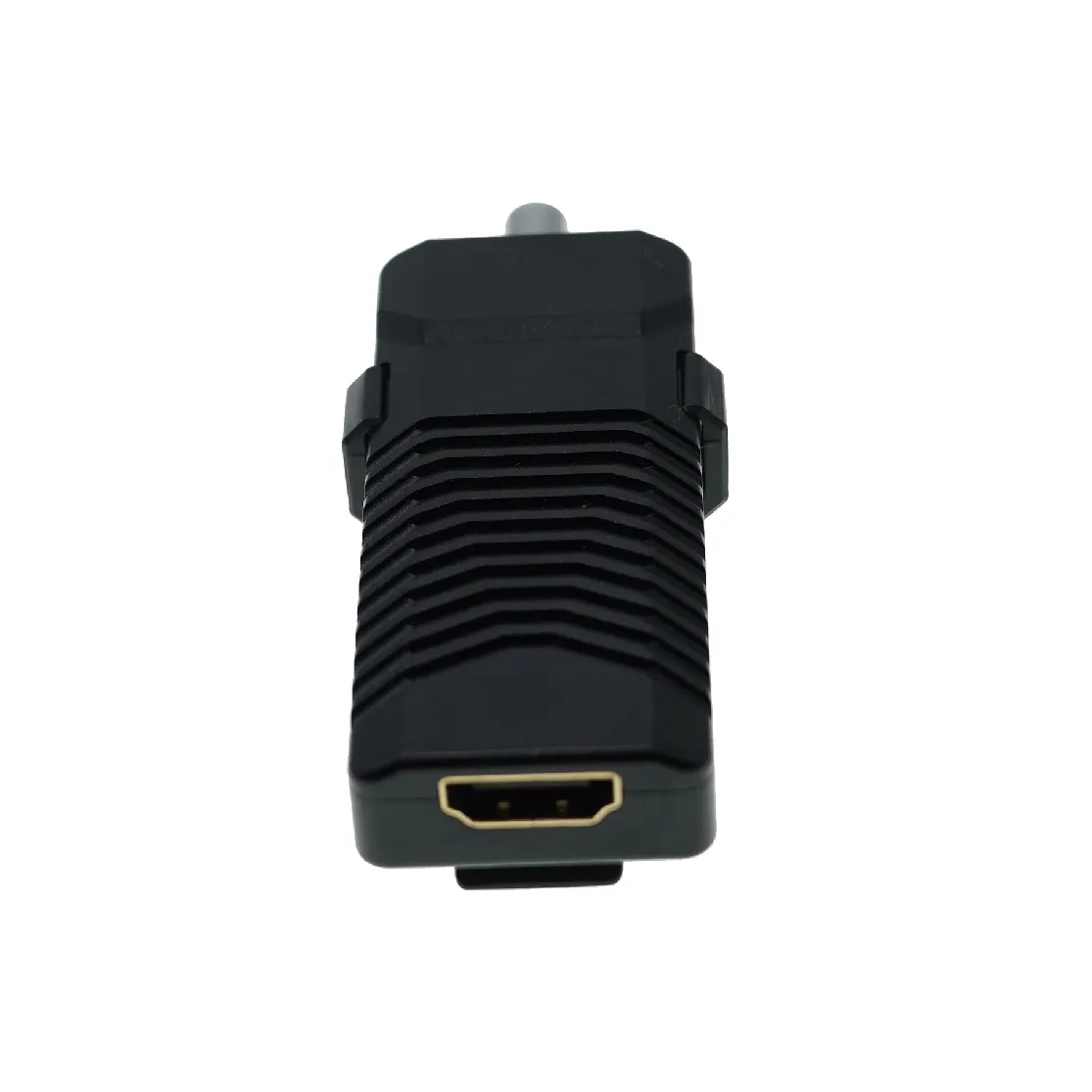

External Video Access	Support HDMI external video access, realize the external video backhaul
