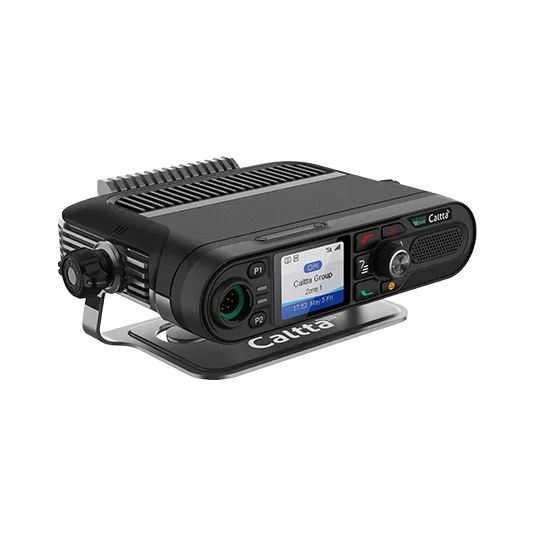

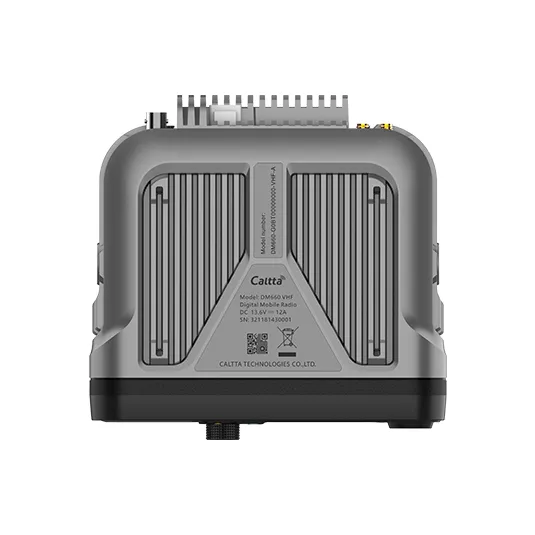

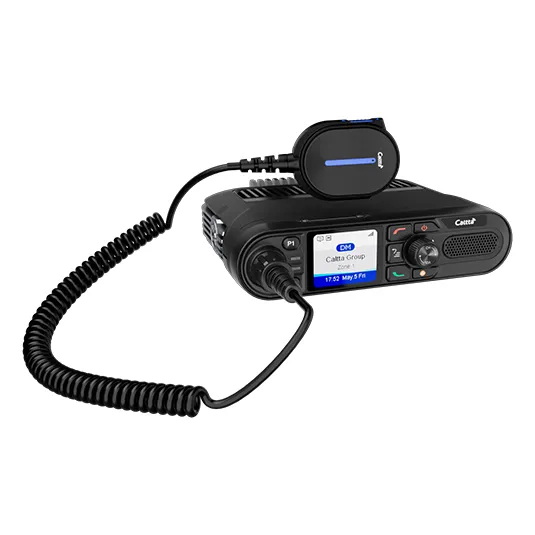

Caltta DM660 DMR Mobile Radio

Compact and Competent  with Excellent Coverage and  Voice Performance

Features
Specifications
Accessories
Documents

Features of DM660 DMR Mobile Radio


  • DMR Tier II

    DMR true two-time slots capability provides double channel capacity, maximizing the use of the channel. It also supports roaming in an IP connect network.


  • Analog/Digital Compatible


      Adaptable with existing analogue networks, it supports a smooth migration to your DMR network.


  • Powerful Communication

    50W transmitting power and minimum 0.16uV receiving sensitivity for maximum performance.


  • Excellent Man-machine Interface


    Based on professional user habits, a deeply customized MMI has been developed to aid users to operate radio more comfortably.


  • Compact Design


    With the slim & lightweight body, the DM660 is easy to be installed in a vehicle. On the front panel, the 1.75-inch LCD provides a rich information display, and the specially designed knob makes operation simple and fast.


  • Loud and Clear

    Equipped with noise cancellation technology and maximum 6W speaker, it provides excellent voice performance.


  • Rich Services

    DM660 supports SMS, real-time clock, GPS, call replay, etc. 26pin accessory port supports external PTT, MIC, 16W amplifier, line out, GPIO, etc.


  • Reliable and Robust

    IP54 and MIL-STD-810H make it suitable for various outdoor works and harsh working environments.



Specifications of DM660 DMR Mobile Radio


General

ProtocolETSI TS 102 361-1,-2,-3

Frequency

UHF1:400-470MHz

VHF: 136-174MHz

Channel Capacity

512

Zone Capacity

32

Channel Spacing

12.5kHz/20KHz/25KHz

Frequency Stability±0.5ppm
Operating Voltage

DC 13.6V ± 15%

Size (H*W*D)

40*166*152mm

Weight

About 1.05Kg

Screen

1.75” TFT LCD, 160*128

Vocoder

AMBE++

GPSOptional
Real-time Clock

Support

EncryptionSupport 40/128/256bit Private Encryption
Accessory Interface26 Pins Connector
Receiver

Sensitivity(Analog Typical)

0.16uV(12dB SINAD)

Sensitivity(Digital Typical)

0.16uV (5% BER )

Adjacent Channel Selectivity

60 dB@12.5KHz /70 dB@20/25KHz (TIA603A)

60dB@12.5KHz /70 dB@20/25KHz (ETSI)

Intermodulation

70 dB (TIA603D)

65 dB (ETSI)

Spurious Rejection

75 dB (TIA603D)

70 dB (ETSI)

Blocking or Desensitization

95dB(TIA603D)

90dB(ETSI)

Co-channel Rejection

-12~0 dB @12.5KHz/-8~0 dB @20/25KHz

Hum and Noise

-40 dB@12.5KHz /-43dB@20KHz /-45 dB@25KHz

Rated Audio Power

3W ( Build-in ) & 6W ( External )

Max Audio Power

6W ( Build-in ) & 16W ( External )

Audio Distortion @ Rated Audio

≤3%

Audio Response

+1~-3dB(TIA603D)

Conducted Spurious Emission

-57 dBm (TIA603D)

Transmitter

Low Power Output

5-25W(UHF1/VHF)

High Power Output

5-45W( UHF1 ) / 5-50W( VHF )

FM Modulation

12.5KHz: 11K0F3E / 20KHz: 14K0F3E /  25KHz: 16K0F3E

4FSK Digital Modulation

12.5KHz Data Only: 7K60F1D&7K60FXD

12.5KHz Voice Only: 7K60F1E&7K60FXE

12.5KHz Voice and Data: 7K60F1W

Conducted/Radiated Emission

-36dBm ≤1GHz ; -30dBm >1GHz

Modulation Limiting

±2.5KHz @12.5KHz /±4KHz @20KHz / ±5.0KHz @25KHz

FM Hum and Noise

-40 dB@12.5KHz /-43dB@20KHz /-45 dB@25KHz

Adjacent Channel Power

60 dB@12.5KHz /70 dB @20/25KHz

Audio Distortion @ Rated Audio

≤3%

Audio Response

+1~-3dB(TIA603D)

Environmental

Operating Temperature

-30℃ ~ +60℃

Storage Temperature

-40℃ ~ +85℃

ESD

IEC 61000-4-2 (level 4) ±8kV (Contact) ±15kV(Air)

Dust and Water Proof

IP54

Reliability

According to MIL-STD-810H

GPS

Accuracy specs are for long-term tracking (95th percentile values>5satellites  visible at nominal -130 dBm signal strength)

TTFF (Time To First Fix)  - Cold Start

<60s

TTFF (Time To First Fix)  - Hot Start

<10s

Horizontal Accuracy

<10m



Accessories of DM660 DMR Mobile Radio

Standard

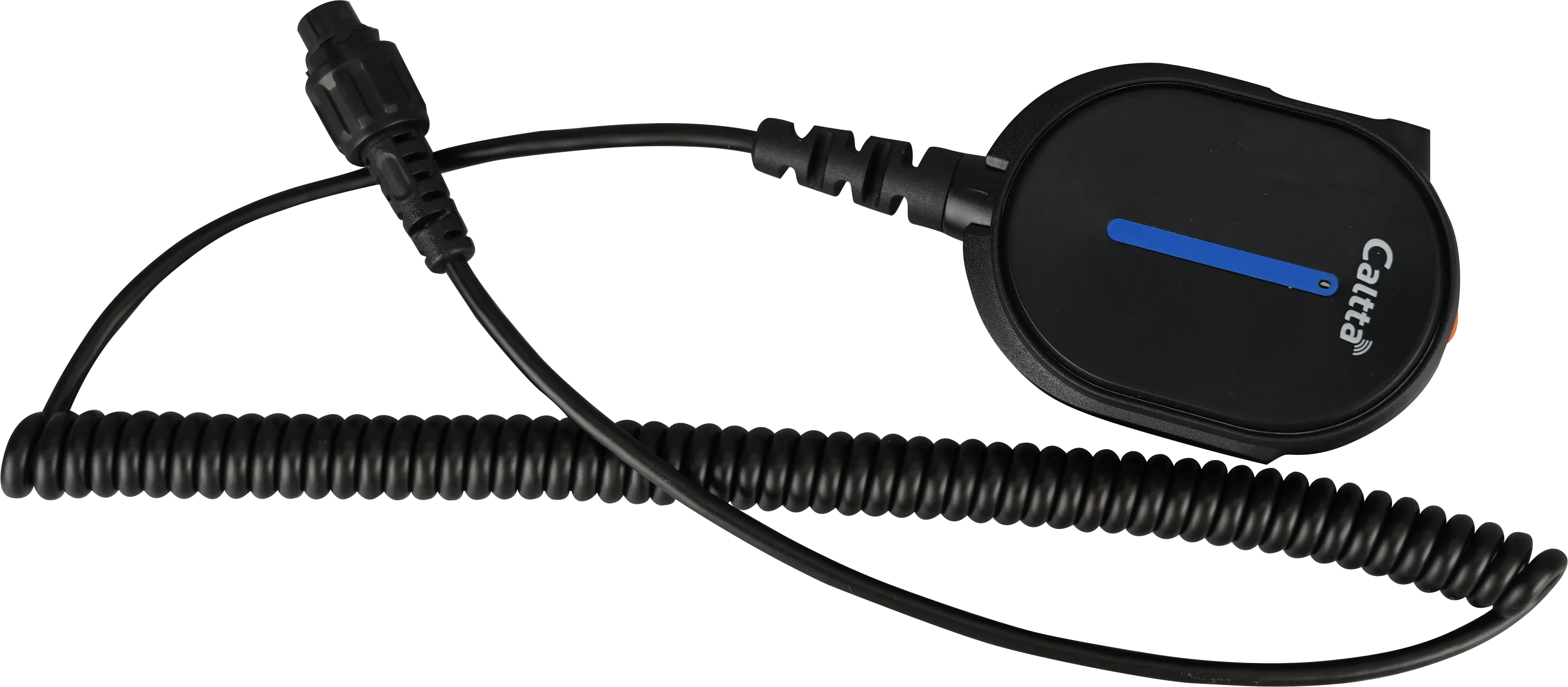

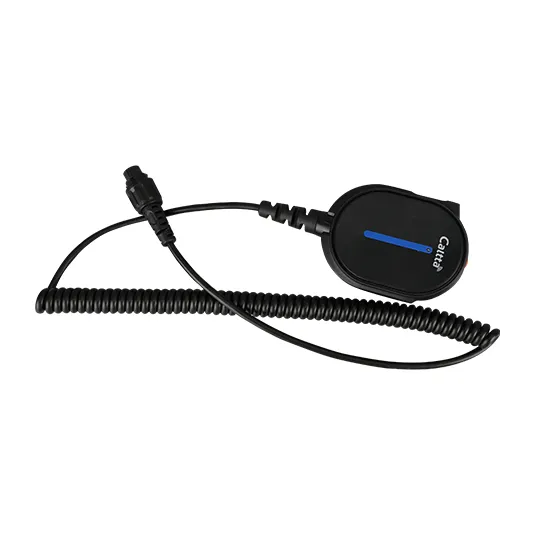

palm-microphone
palm-microphone
power-cable
power-cable

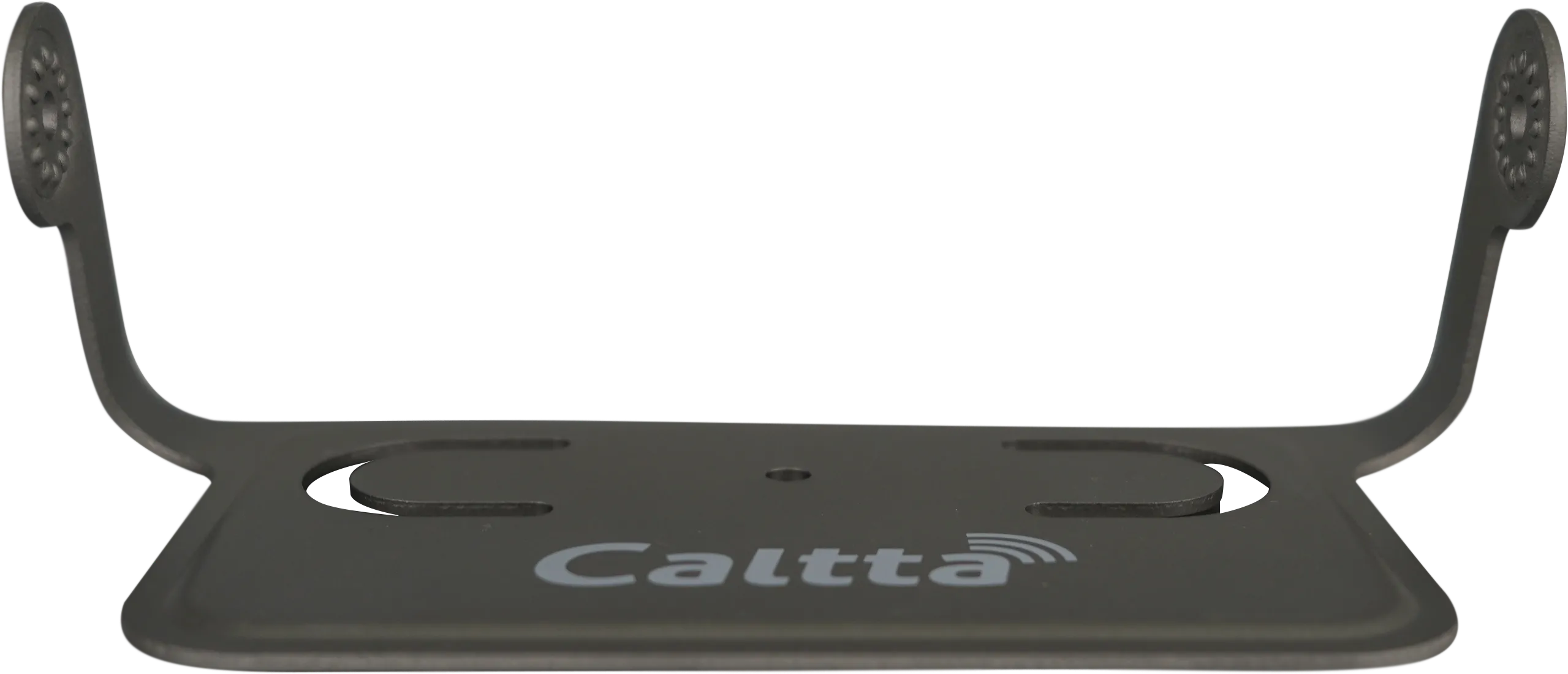

mounting-bracket
mounting-bracket
Optional

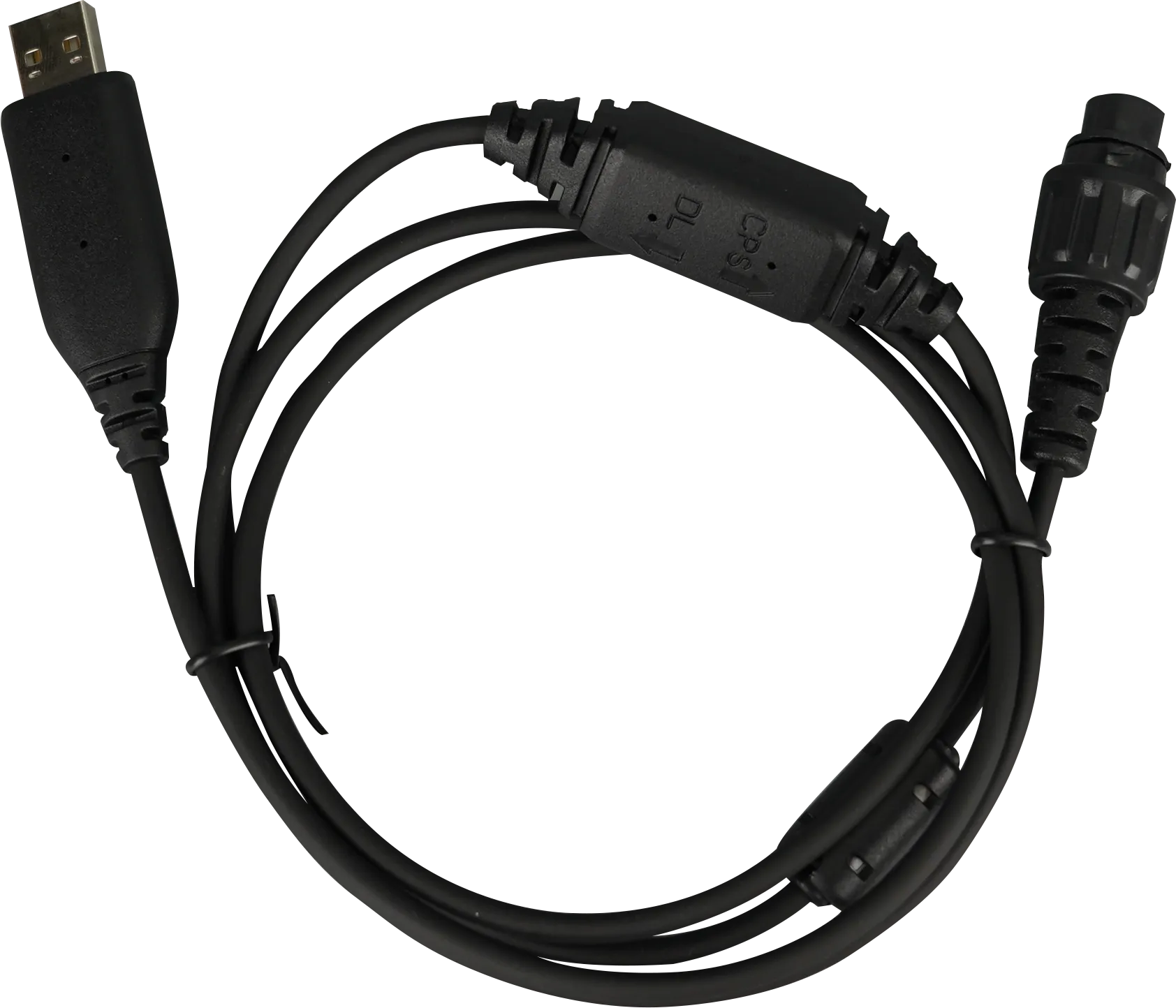

data-cable
data-cable

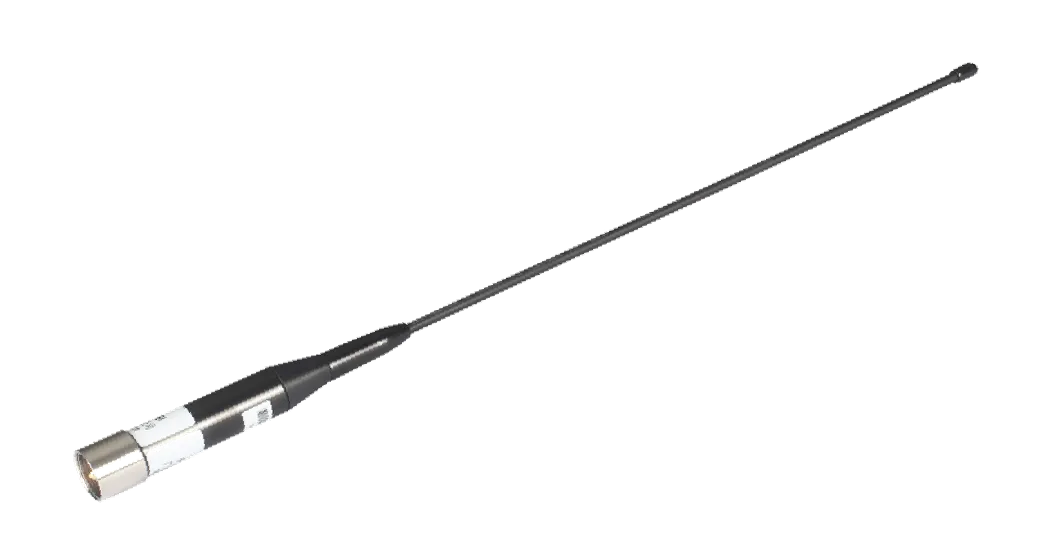

3.5dbi-antenna
3.5dbi-antenna

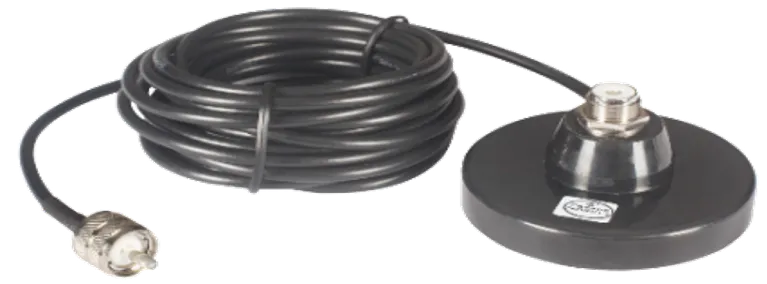

m90-magnetic-antenna-base
m90-magnetic-antenna-base

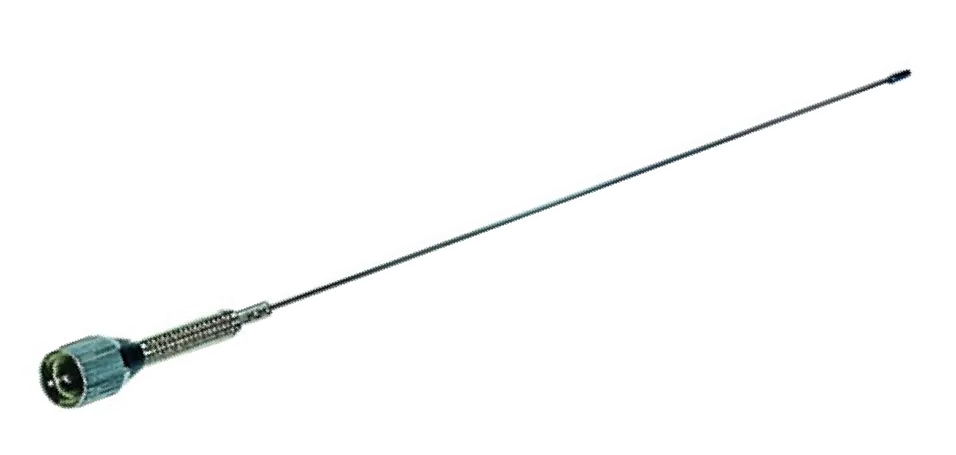

5.5dbi-antenna
5.5dbi-antenna

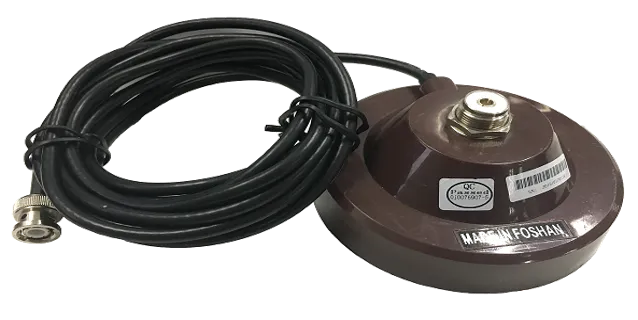

m110-magnetic-antenna-base
m110-magnetic-antenna-base

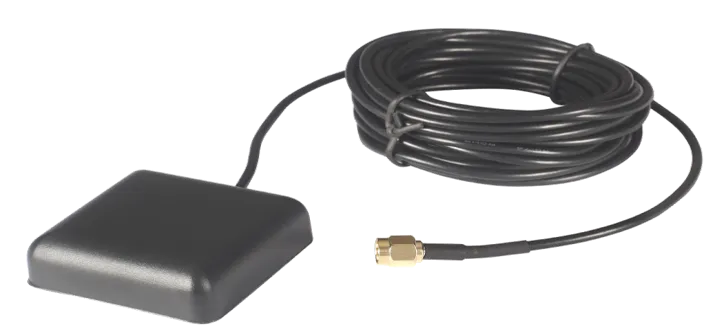

gps-antenna
gps-antenna
